Daytime Running Lamp (DRL) Module

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.
2. Remove the instrument panel insulator.




3. Slide the daytime running lamp module from the bracket.
4. Disconnect the electrical connectors.

INSTALLATION PROCEDURE

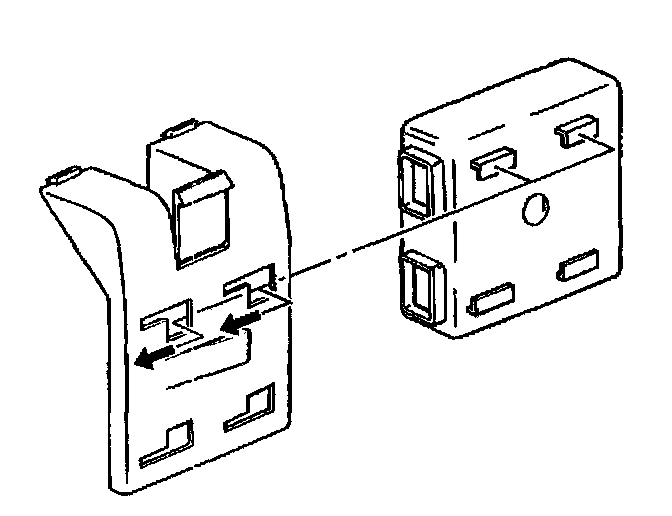

1. Position the daytime running lamp module in the bracket.




2. Slide the daytime running lamp module into the bracket in order to secure the module.
3. Connect the electrical connectors.
4. Install the instrument panel insulator.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

5. Connect the negative battery cable.
