ABS Light Relay: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the I/P sound insulator panel.

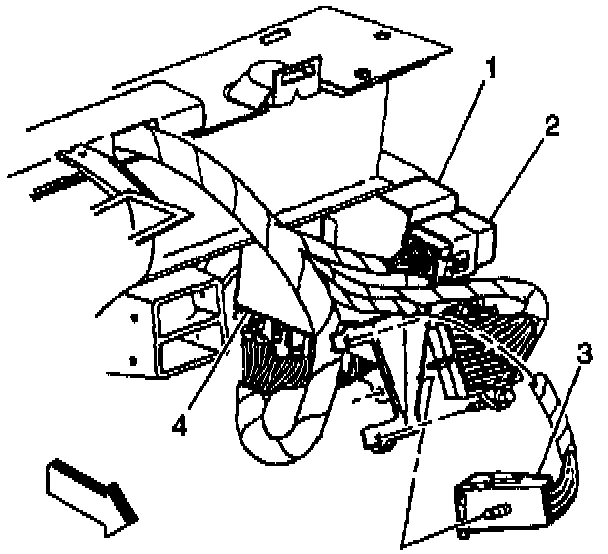

3. Release the lamp driver module (3) from the EBCM/EBTCM bracket (1).
4. Remove the lamp driver module (3) with the black connector from the l/P harness on the left side near the EBCM/EBTCM (4).

INSTALLATION PROCEDURE





1. Install the lamp driver module (3) with the black connector to the l/P wire harness.
2. Use a retainer to secure the lamp drive module (3) to the EBCM/EBTCM bracket (1).
3. Install the I/P sound insulator panel.
4. Connect the negative battery cable.
