Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Accessories and Optional Equipment
>>
Alarm Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

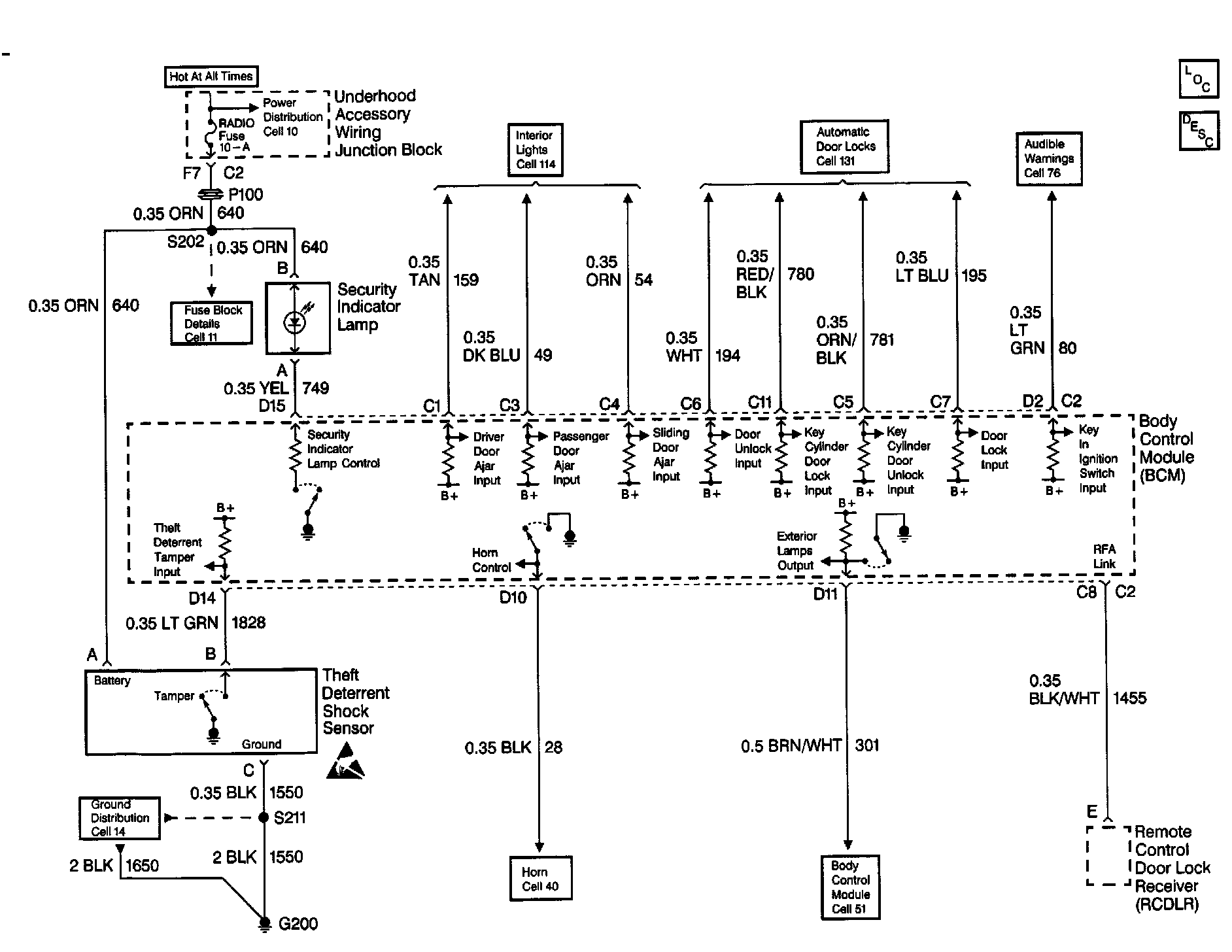

Theft Deterrent System Schematics: G200, G302:
