Fuel Level Sensor Replacement

REMOVE OR DISCONNECT
1. Relieve the fuel system fuel pressure, refer to Fuel Pressure Release.
2. Drain the fuel tank, refer to Fuel Tank / Fuel Tank Draining.
3. Fuel tank, refer to Fuel Tank.
4. Fuel sender assembly, refer to Fuel Sender Assembly Replacement.

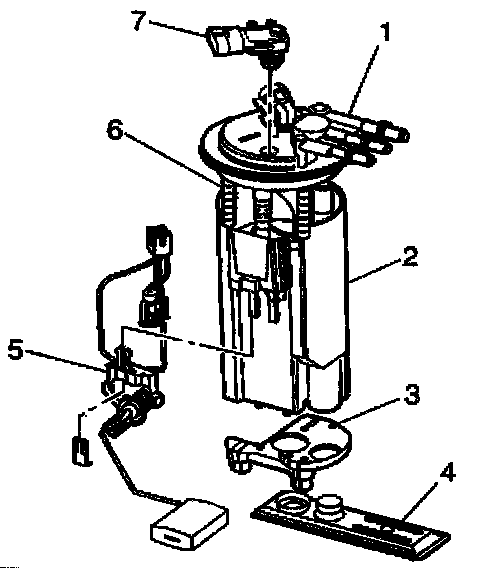

5. Fuel level sensor (5) from the modular fuel sender.

INSTALL OR CONNECT
1. Fuel level sensor (5) to the modular fuel sender.
2. Fuel sender assembly.
3. Fuel tank.
4. Refill tank.
5. Inspect for leaks:
a. Turn the ignition switch to the ON position for 2 seconds.
b. Turn the ignition switch to the OFF for 10 seconds.
c. Turn the ignition switch to the ON position.
d. Check for fuel leaks.
