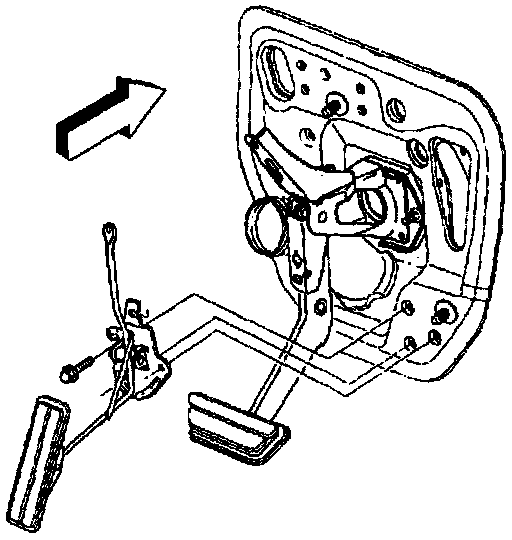

Accelerator Controls Pedal Replacement

REMOVE OR DISCONNECT
1. Left instrument panel sound insulator.
2. Accelerator cable from accelerator pedal.
3. Bolts and studs holding the accelerator pedal to the bulk head.
4. Accelerator pedal.

INSTALL OR CONNECT
1. Accelerator pedal to bulkhead.
2. Accelerator pedal bolts and studs. Tighten bolts and studs to 3.0 N.m (27 lb in).
3. Accelerator cable to accelerator pedal.
4. Left instrument panel sound insulator.
5. The throttle should operate freely without binding between full closed and wide open throttle.
6. Check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.
