Enhanced EVAP Service Port

Enhanced Evaporative Emission (EVAP) Service Port:

DESCRIPTION

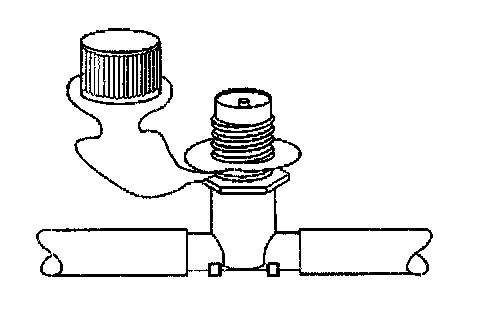

The enhanced [1][2]EVAP service port is located in the evaporative purge hose located between the purge solenoid and the canister. The service port is identified by a green colored cap. The port contains a schrader valve and fittings to allow connections of EVAP Diagnostic Station for Loose Carbon Cleaning evaporative pressure/purge diagnostic system. Refer to EVAP Control System Description for further information and diagnosis of the enhanced EVAP system.
