Home >> Chevy Truck >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> UH: Radio Fuse

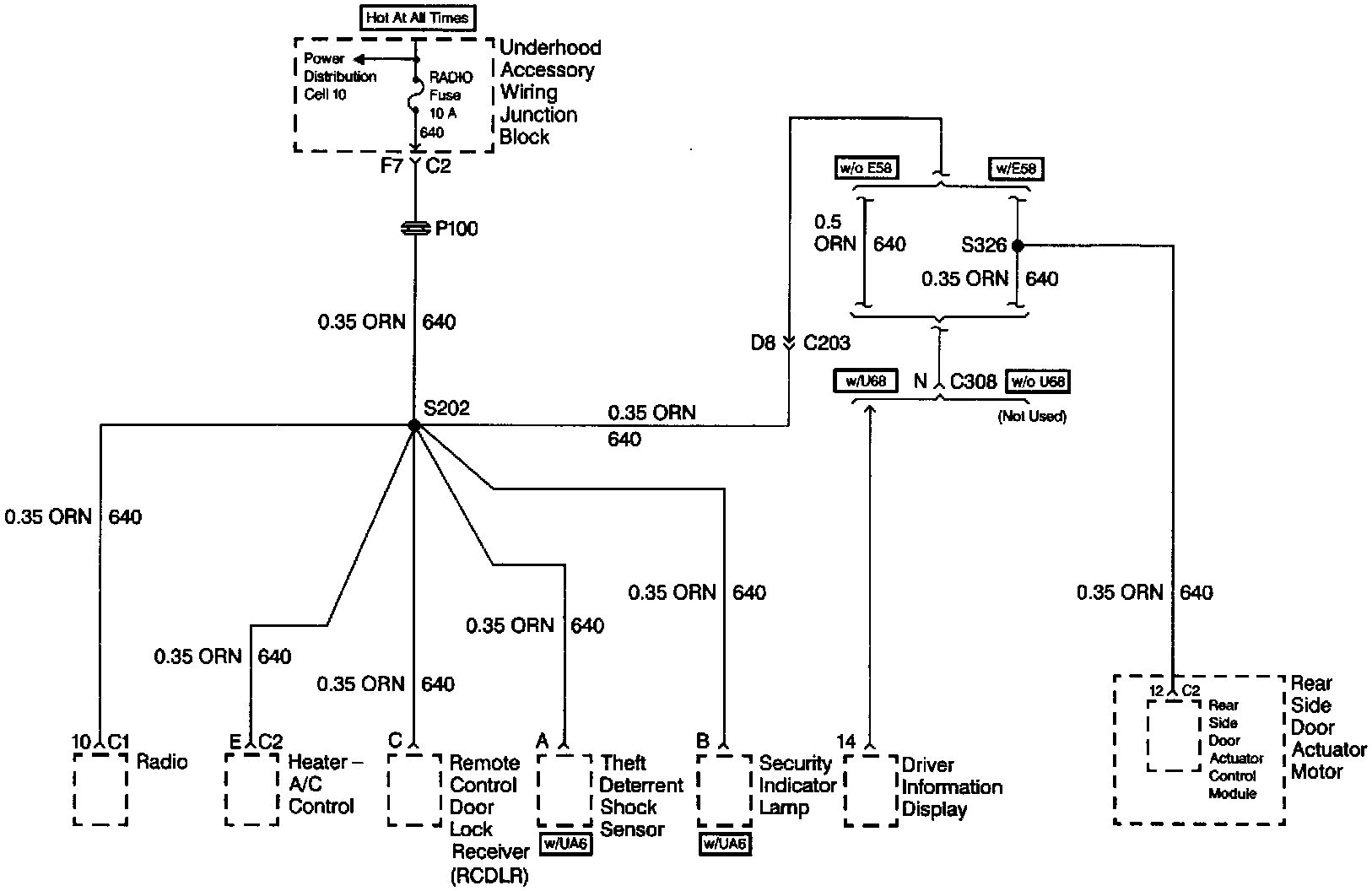

UH: Radio Fuse

UH: Radio Fuse:
