Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
PCM, ABS/TCS IGN, CAN Vent SOL, and DRL Fuses
PCM, ABS/TCS IGN, CAN Vent SOL, and DRL Fuses

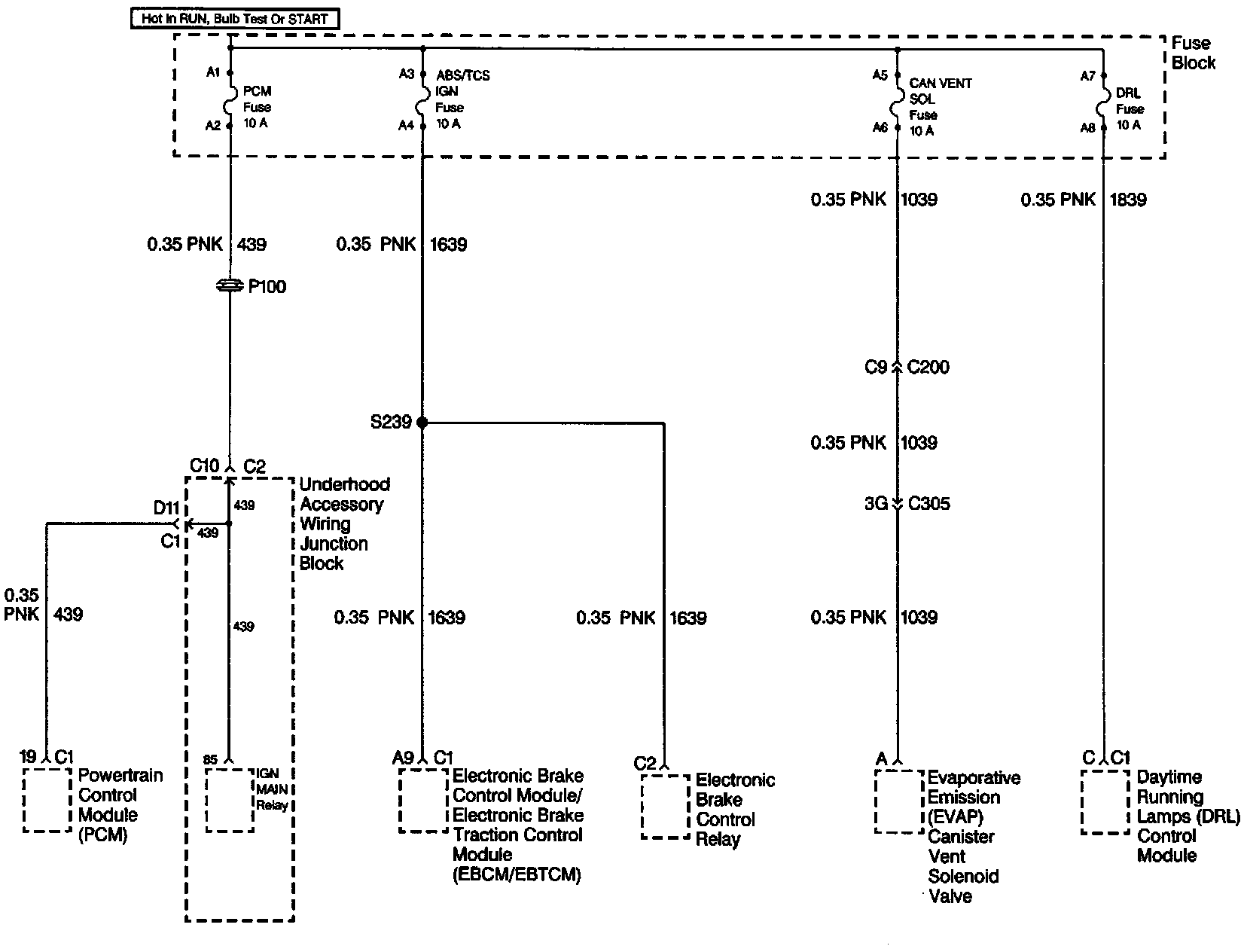

Fuse Block: PCM, ABS/TCS IGN, CAN VENT SOL, AND DRL FUSES:
