Home >> Chevy Truck >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> I/P Ground >> LH

LH

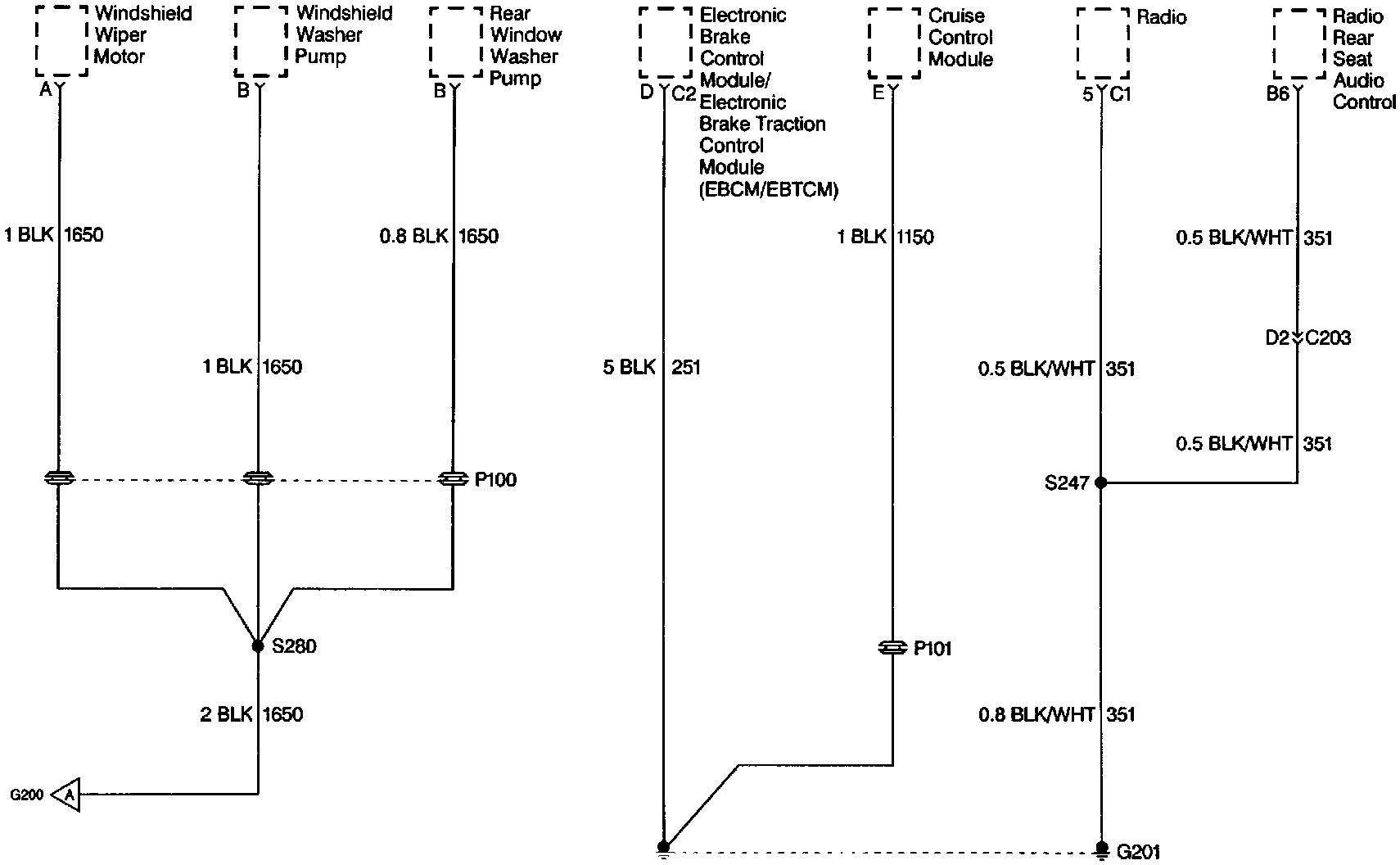

RH I/P Ground: G200 And LH I/P Ground: G201:
