Home >> Chevy Truck >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Body Ground >> LH

LH

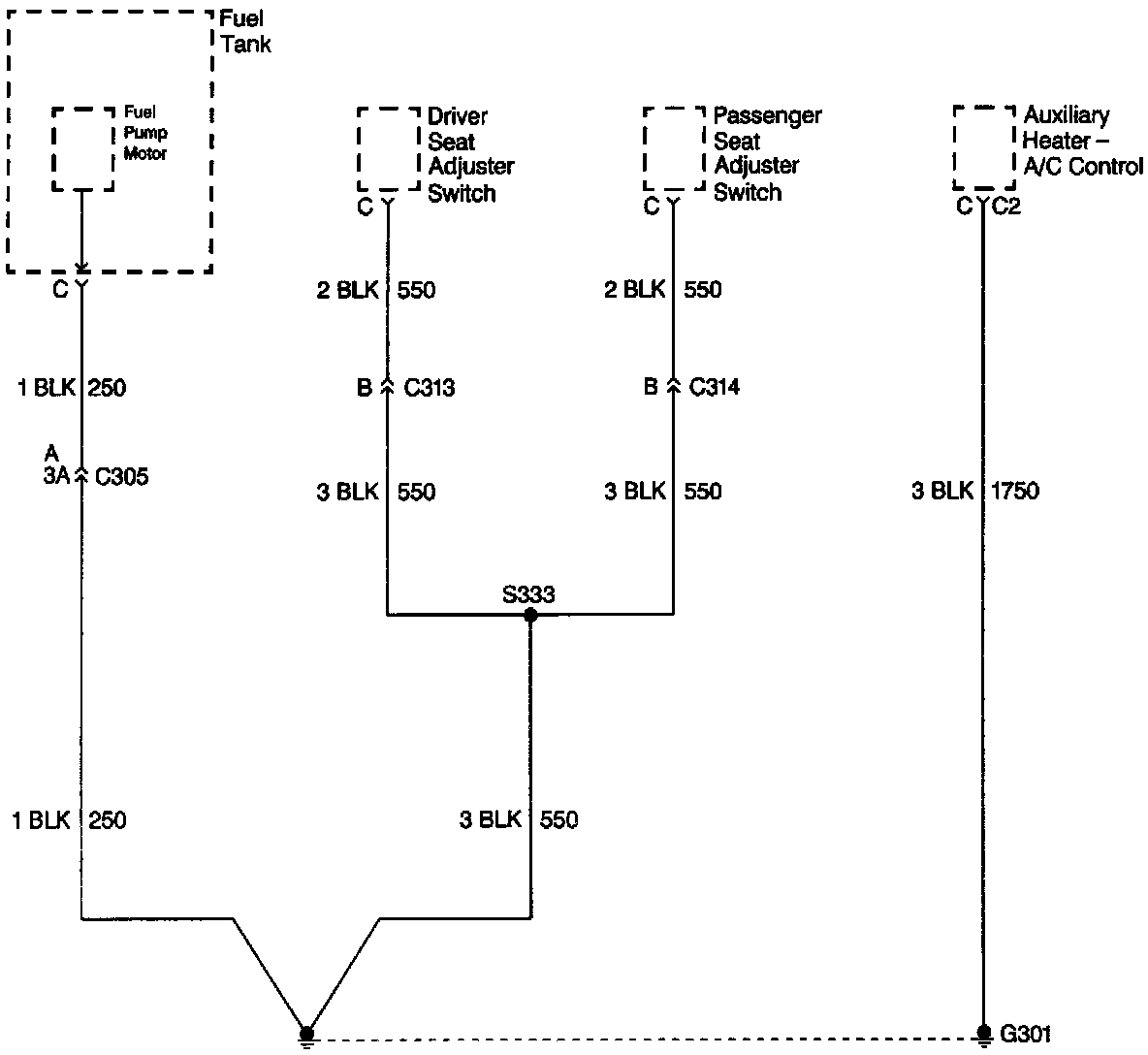

LH Body Ground: G301:
