Driver/Vehicle Information Display: Service and Repair

REMOVAL PROCEDURE
1. Remove the overhead console.

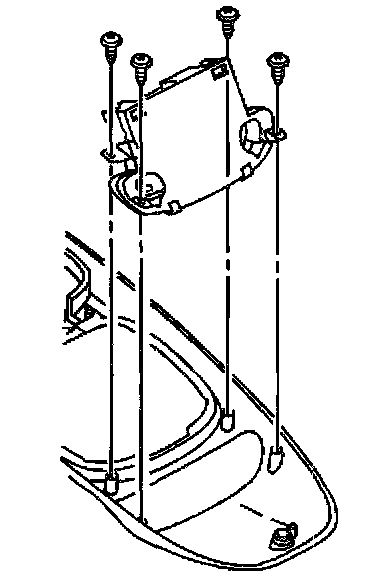

2. Remove the driver information display to overhead console screws.
3. Remove the driver information display from the overhead console.

INSTALLATION PROCEDURE
1. Install the driver information display to overhead console.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the driver information display to overhead console screws.

Tighten
Tighten the screws to 1 N.m (9 lb in).

3. Install the overhead console.
4. Set the compass variance. Calibrate the compass.
