Cigarette Lighter: Service and Repair

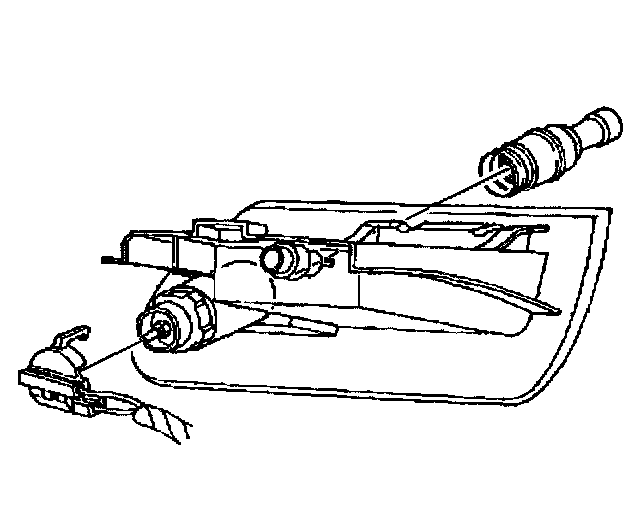

REMOVAL PROCEDURE
1. Remove the IP ashtray.
2. Unscrew the P cigarette lighter housing from the cigarette lighter element.
3. Remove the IP cigarette lighter from the ashtray

INSTALLATION PROCEDURE
1. Install the IP cigarette lighter to the ashtray.
2. Screw the IP cigarette lighter housing into the cigarette lighter element.
3. Install the IP ashtray.
