Off Car

Removal Procedure

Tool Required
J 41790 Compressor Holding Fixture

1. Install the compressor onto the J41790.

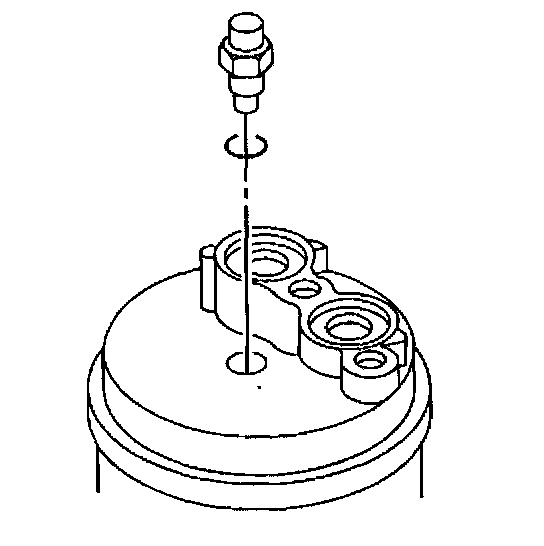

2. Remove the pressure relief valve from the rear head of the compressor.

Installation Procedure

Tool Required
J 41790 Compressor Holding Fixture

1. Clean the pressure relief valve seat area of the rear head.
2. Lubricate the O-ring of the new pressure relief valve with clean 525 viscosity refrigerant oil.
3. Install the new pressure relief valve into the compressor.

Tighten
Tighten the pressure relief valve to 9 N.m (80 lb in).

4. Remove the compressor from the J41790.
