Side Window

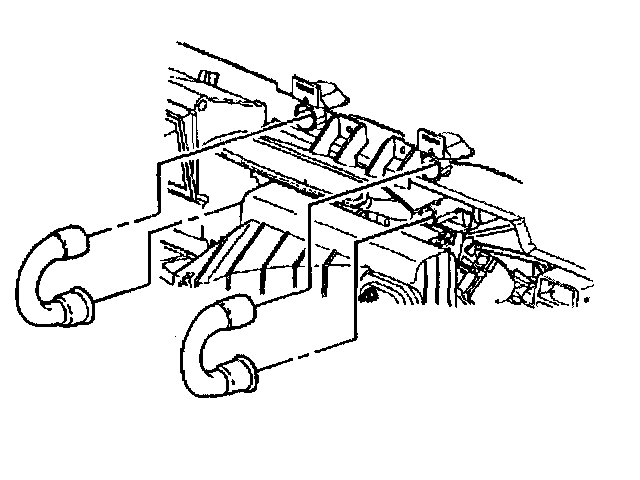

Removal Procedure

1. Remove the instrument upper trim panel.





2. Pull the side window defroster duct from the instrument panel.
3. Remove side window defroster duct from instrument panel.

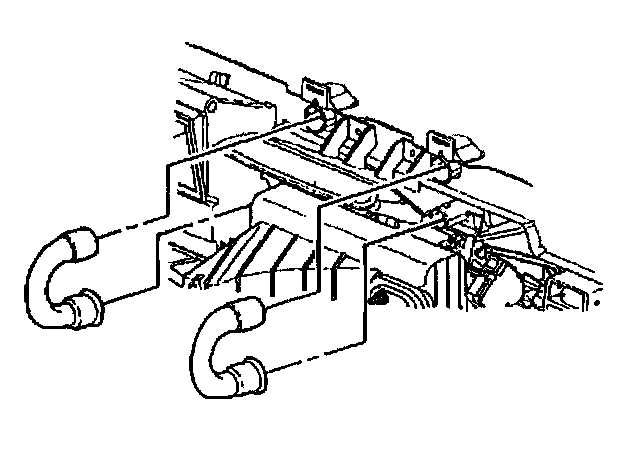

Installation Procedure





1. Position side window defroster duct to instrument panel.
2. Push the side window defroster duct to snap duct into the instrument panel.
3. Install the instrument upper trim panel.
