Center

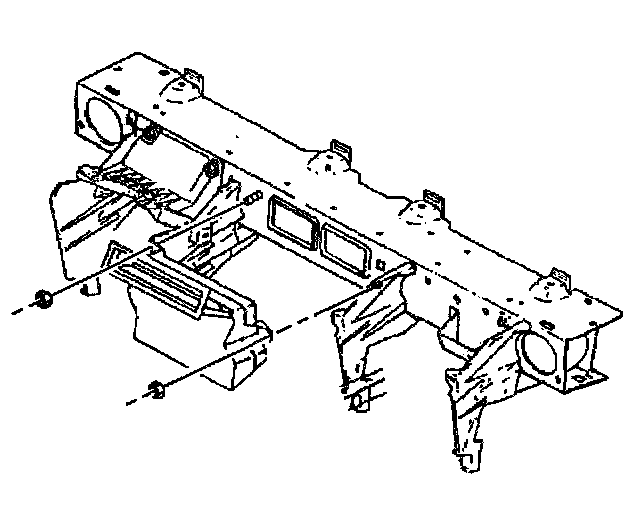

Removal Procedure

1. Remove the instrument panel.





2. Remove the center air distribution duct retaining nuts.
3. Remove the center air distribution duct from the cross car beam.

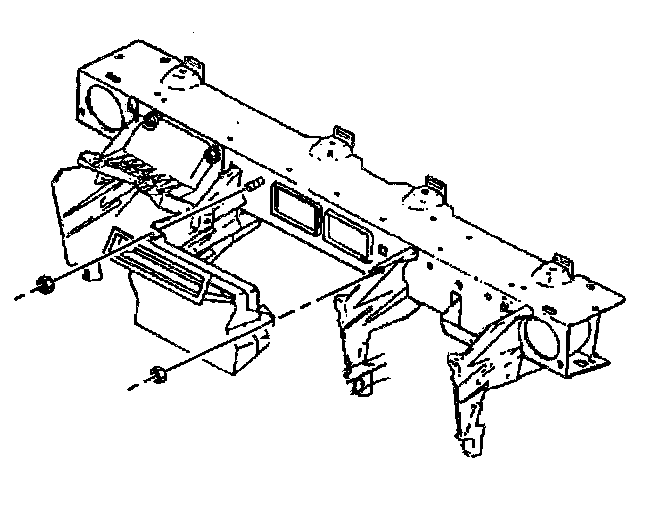

Installation Procedure

1. Position the center air distribution duct to the cross car beam.





2. Install the center air distribution duct retaining nuts.

Tighten
Tighten the retaining nuts to 10 N.m (89 lb in).

3. Install the instrument panel.
