Defroster

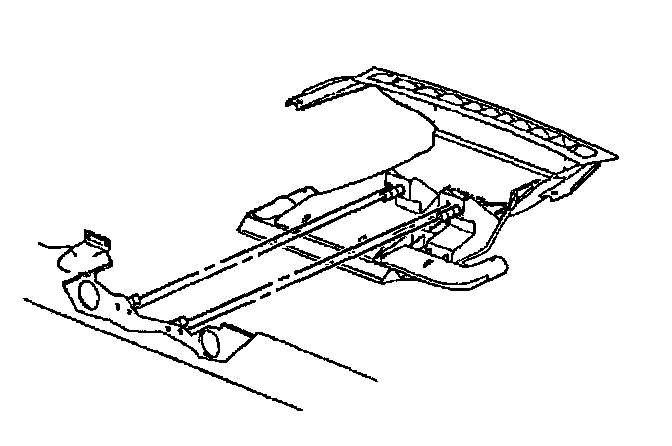

Removal Procedure

1. Remove the instrument upper trim panel.





2. Remove the defroster outlet duct retaining screws.
3. Unsnap the defroster outlet duct from the instrument panel.
4. Remove the defroster outlet duct from the instrument panel.

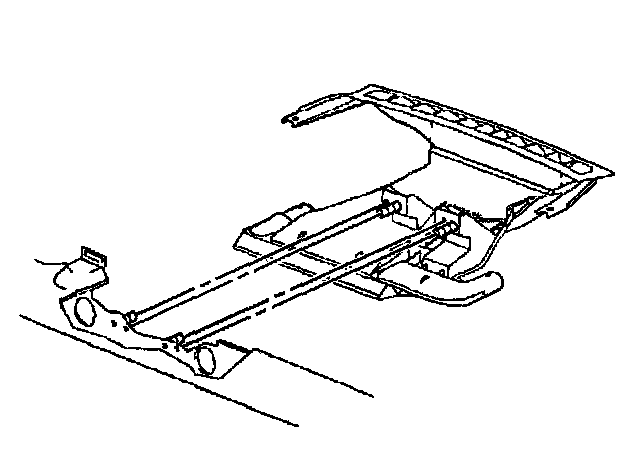

Installation Procedure





1. Position the defroster outlet duct to the instrument panel.
2. Push the defroster outlet duct to snap the duct into the instrument panel.
3. Install the defroster outlet duct retaining screws.

Tighten
Tighten the retaining screws to 10 N.m (89 lb in).

4. Install the instrument upper trim panel.
