Auxiliary System

Removal Procedure

1. Remove the left side quarter trim.
2. Remove the headliner.





3. Remove the clips that are retaining the air ducts.

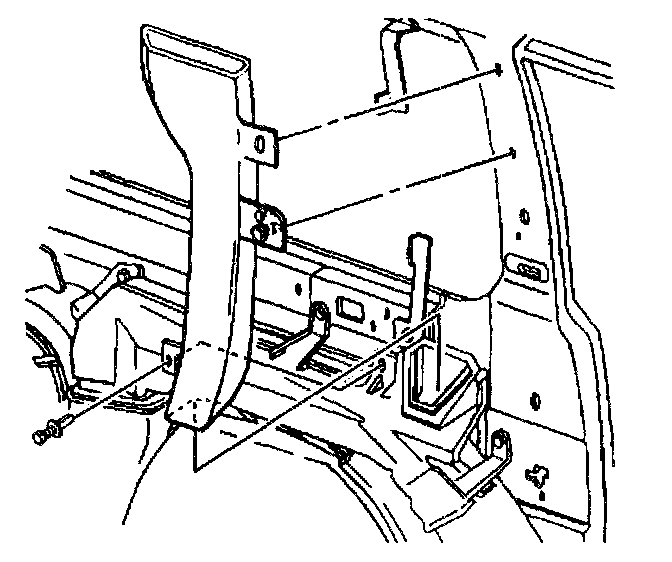

4. Remove the mid upper air distribution duct from the C-pillar.

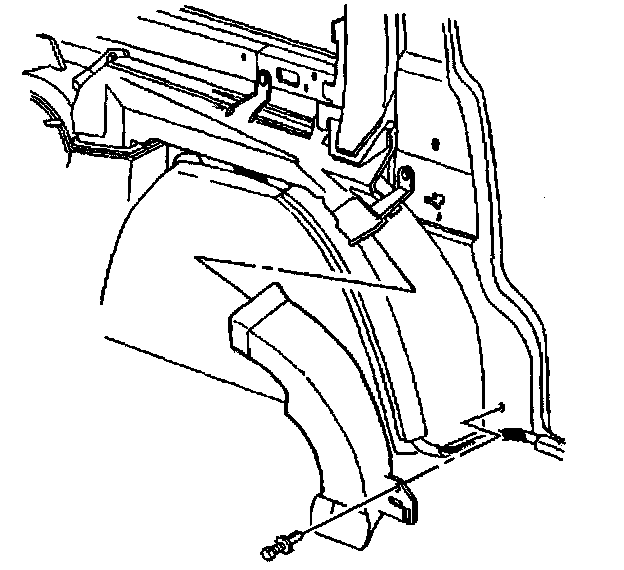

5. Remove the bottom air distribution duct from the C-pillar.

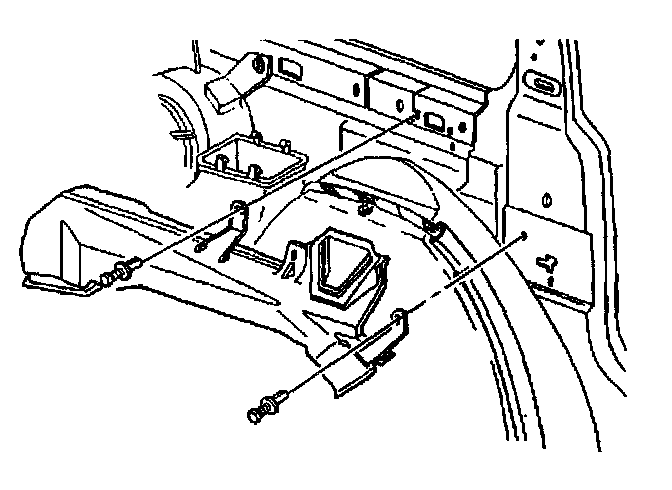

6. Remove the middle air distribution duct from the rear quarter.

Installation Procedure





1. Install the middle air distribution duct from the rear quarter.





2. Install the bottom air distribution duct from the C-pillar.

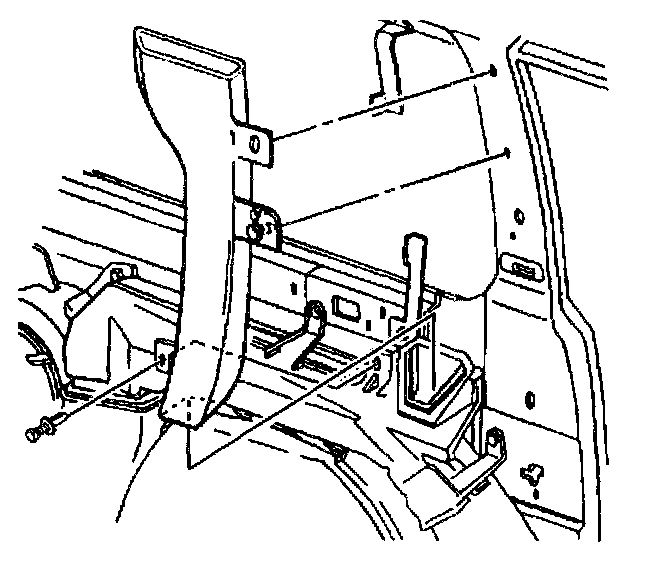

3. Install the mid upper air distribution duct from the C-pillar.
4. install the retaining clips to the air duct system.
5. Install the headliner.
6. Install the left side quarter trim.
