Exhaust Heat Shield Replacement

REMOVAL PROCEDURE
1. Raise and support the vehicle.
2. Remove the exhaust system muffler.

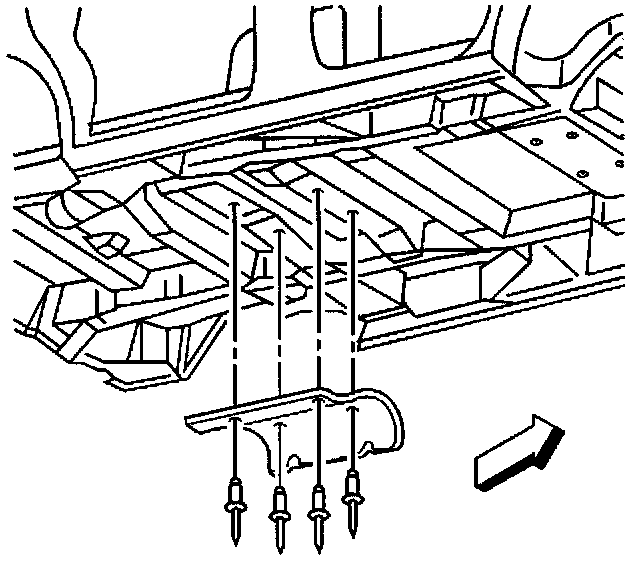

3. Use a drill in order to remove the rivets at the exhaust muffler heat shield.





4. Remove the exhaust muffler heat shield from the vehicle.

INSTALLATION PROCEDURE
1. Install the exhaust muffler heat shield to the vehicle with new rivets.
2. Install the exhaust system muffler.
3. Lower the vehicle.
