Converter Heat Shield Replacement

REMOVAL PROCEDURE
1. Raise and support the vehicle.
2. Remove the catalytic converter.

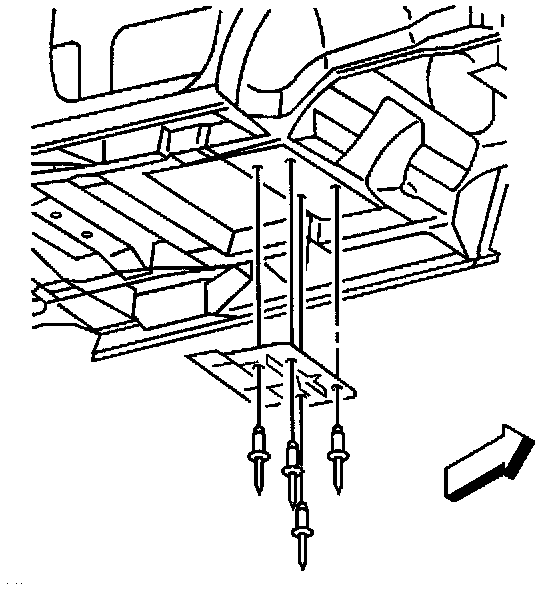

3. Use a drill in order to remove the catalytic converter heat shield rivets.





4. Remove the catalytic converter heat shield.

INSTALLATION PROCEDURE
1. Install the catalytic converter heat shield.
2. Install the catalytic converter heat shield to the vehicle with new rivets.
3. Install the catalytic converter.
4. Lower the vehicle.
