Camshaft Bearing Installation

^ TOOLS REQUIRED

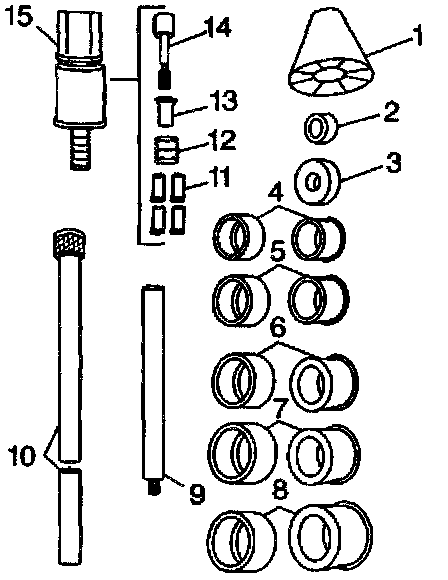

- J 33049 Camshaft Bearing Remover/Installer





1. Assemble the J 33049 according to the manufacturer's instructions.

NOTICE: Severe engine damage may result if the oil holes are not correctly aligned.

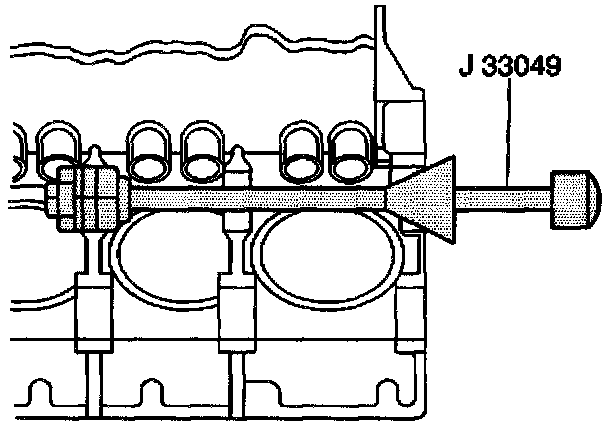

2. Install the camshaft bearings in the following order:
2.1. Index the camshaft bearing oil holes with the engine block oil passages.
2.2. Place the bearing on the J 33049.
2.3. Install the third camshaft bearing.
2.4. Install the second camshaft bearing.
2.5. Install the outer camshaft bearings.

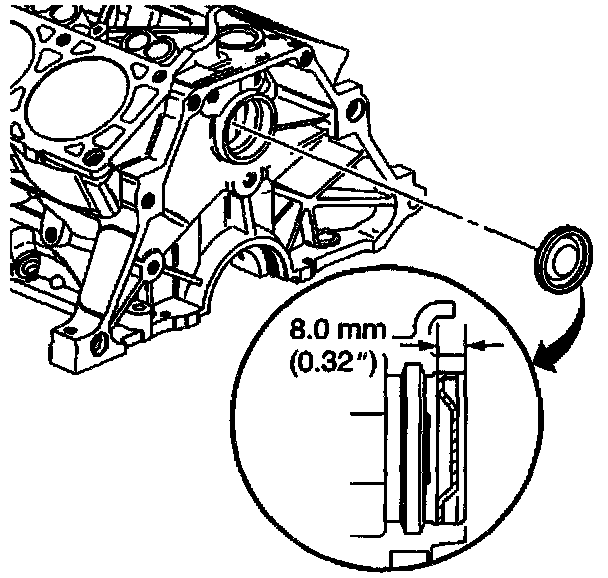

3. Apply sealer to the camshaft rear bearing hole plug.
4. Install the camshaft rear bearing hole plug.
