Oil Cooler: Service and Repair

REMOVAL PROCEDURE





1. Drain the engine coolant from the engine cooling system.
2. Raise and suitably support the vehicle.
3. Disconnect the knock sensor electrical connector.

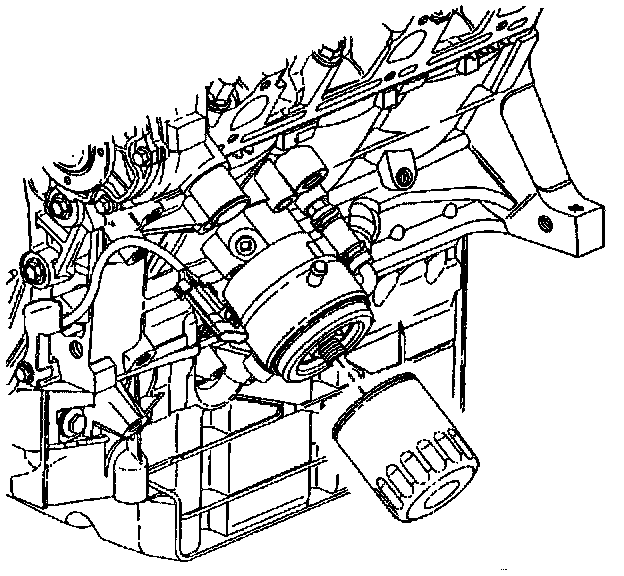

4. Remove the oil filter.

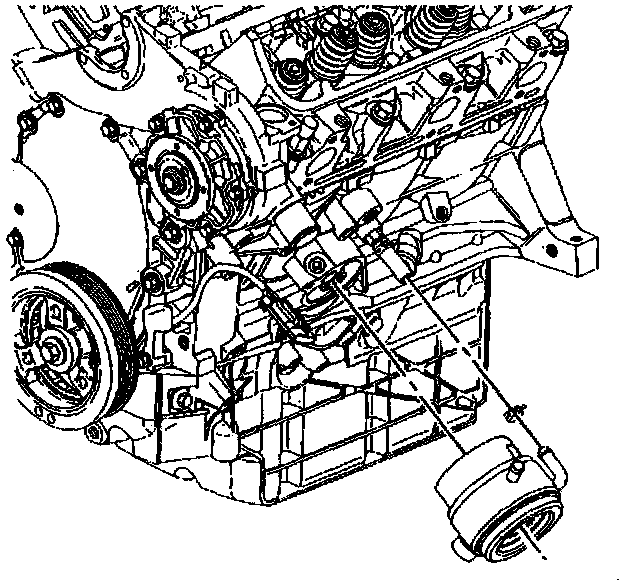

5. Remove the oil cooler outlet hose from the oil cooler. Position the outlet hose aside.

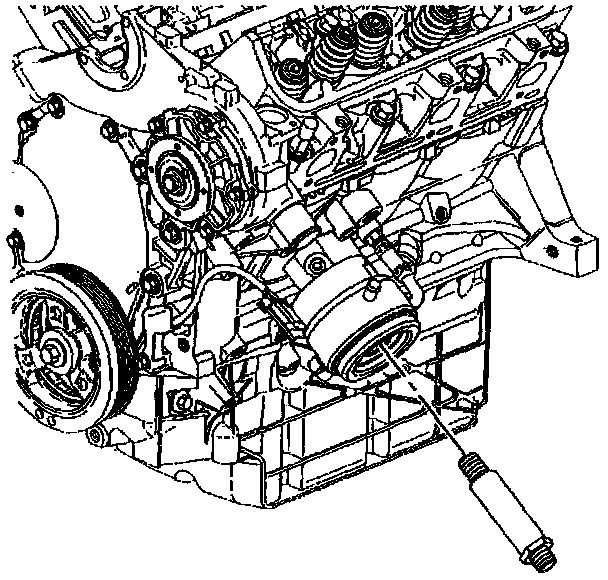

6. Remove the oil cooler connector.

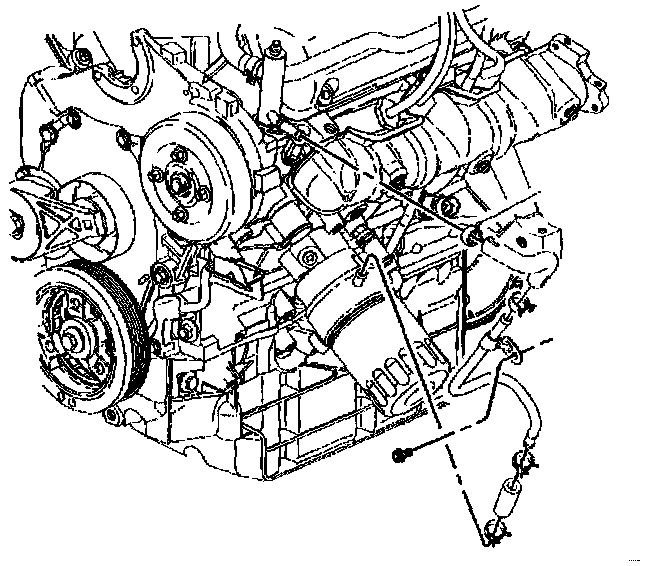

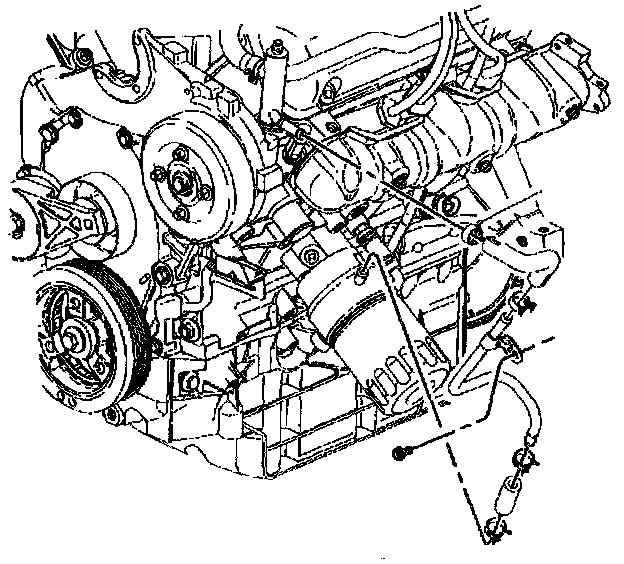

7. Remove the oil cooler inlet hose clamp and the oil cooler.
8. Clean and inspect the engine block mating surface.

INSTALLATION PROCEDURE





1. Install the oil cooler and the oil cooler inlet hose clamp. Ensure that the oil cooler seal is in place. Coat the seal with engine oil.





2. Install the oil cooler connector.
^ Tighten the oil cooler connector to 50 Nm (37 ft. lbs.).





3. Connect the oil cooler outlet hose to the oil cooler.

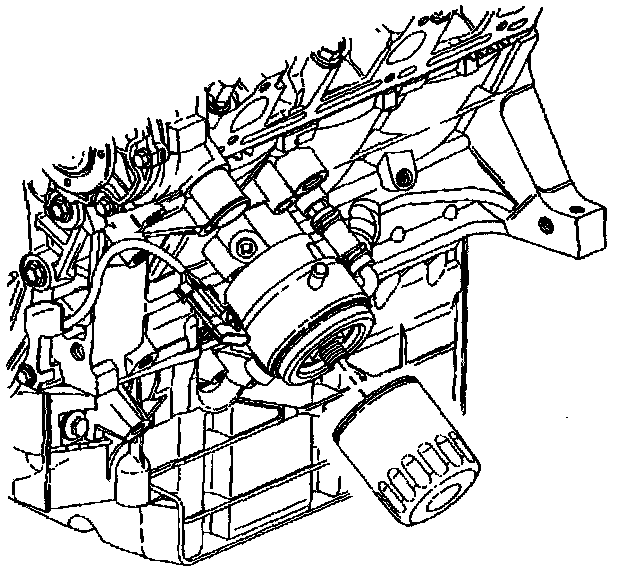

4. Install the oil filter.
5. Connect the knock sensor electrical connector.
6. Lower the vehicle.
7. Fill the engine cooling system with engine coolant.
8. Add engine oil as necessary.
9. Inspect the oil cooler for leaks.
