Case and Associated Parts

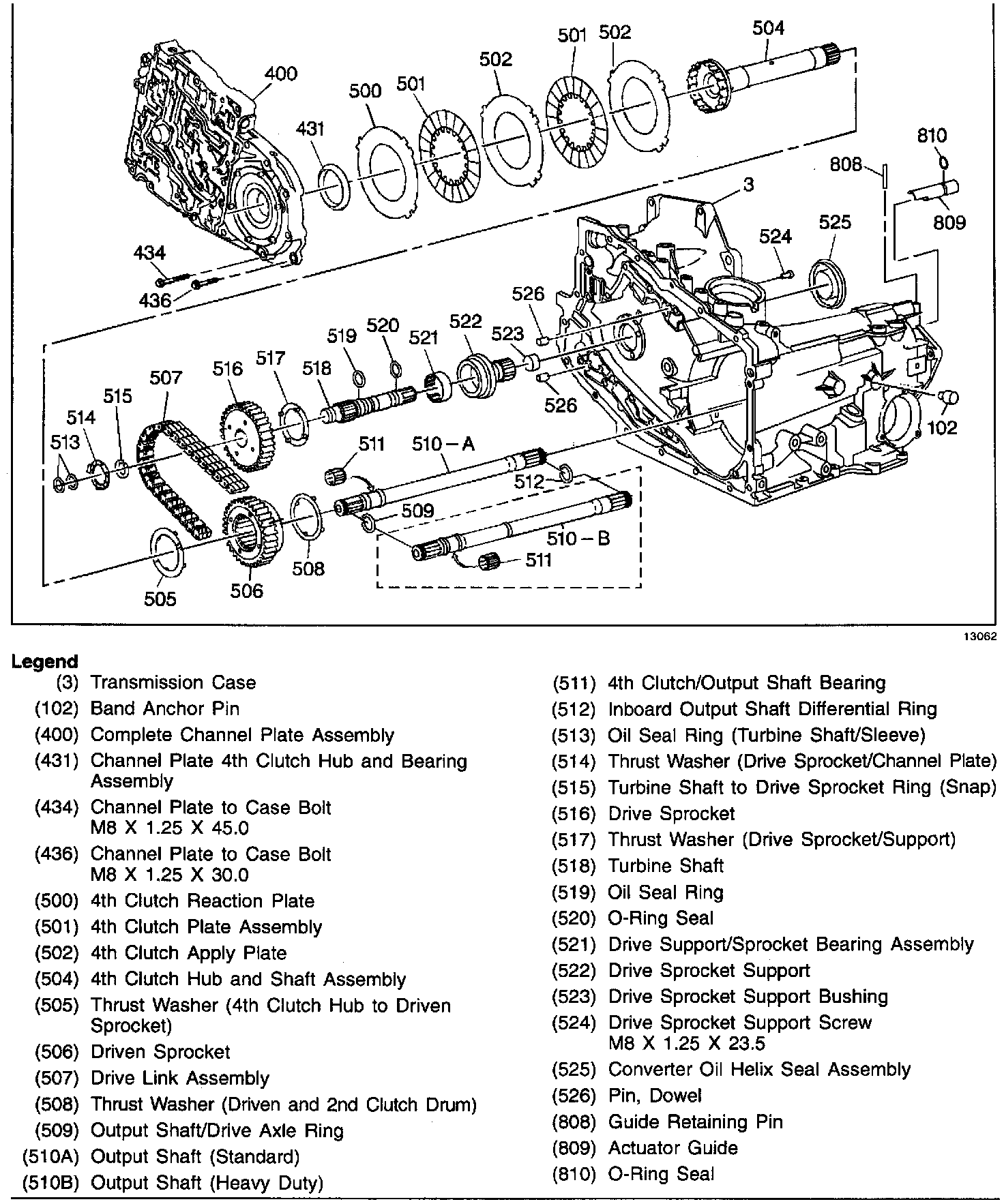

CASE AND ASSOCIATED PARTS (1 OF 4)

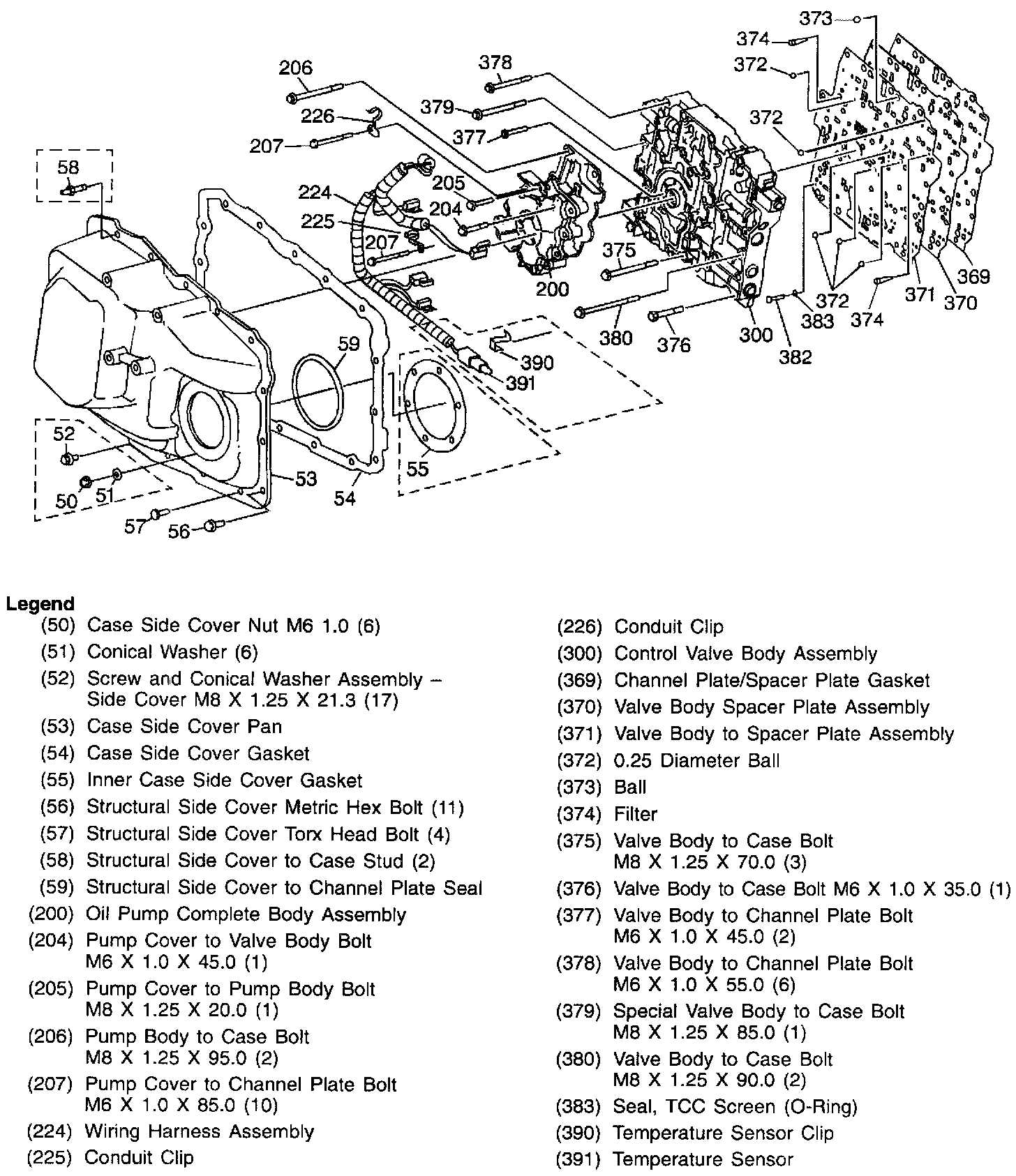

CASE AND ASSOCIATED PARTS (2 OF 4)

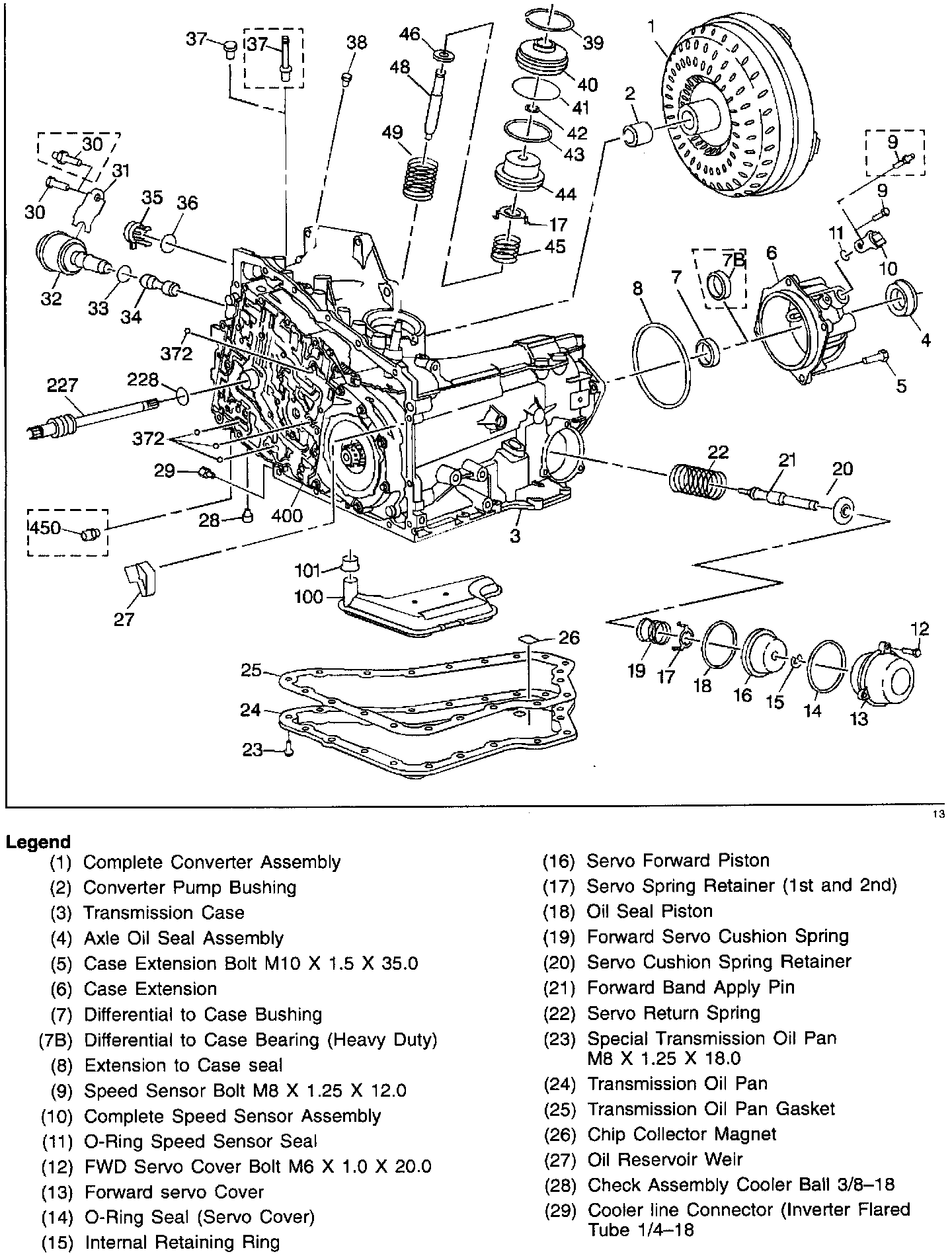

CASE AND ASSOCIATED PARTS (3 OF 4)

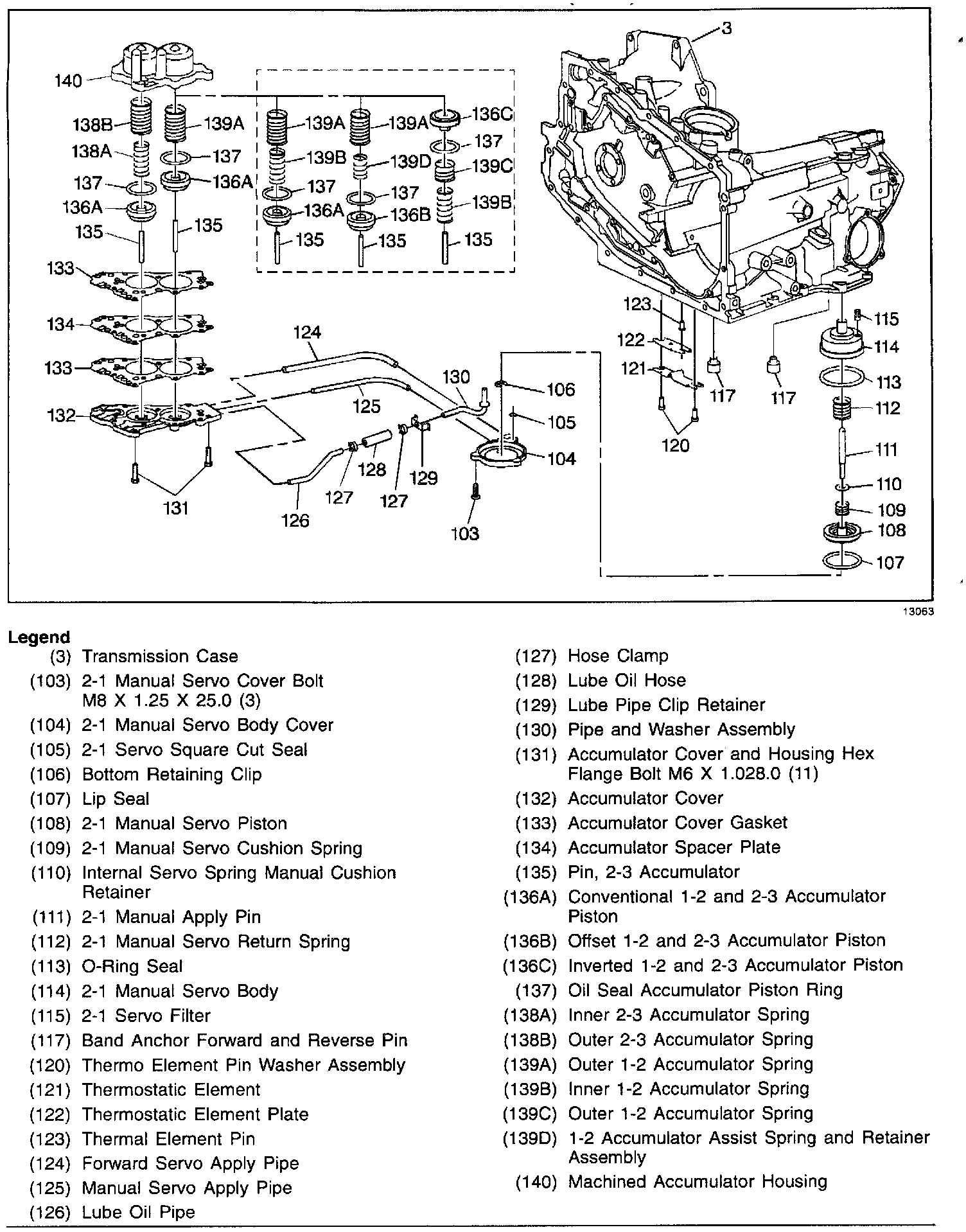

CASE AND ASSOCIATED PARTS (4 OF 4)
