Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Video System Schematics
>>
Radio Audio Channel Outputs
Radio Audio Channel Outputs

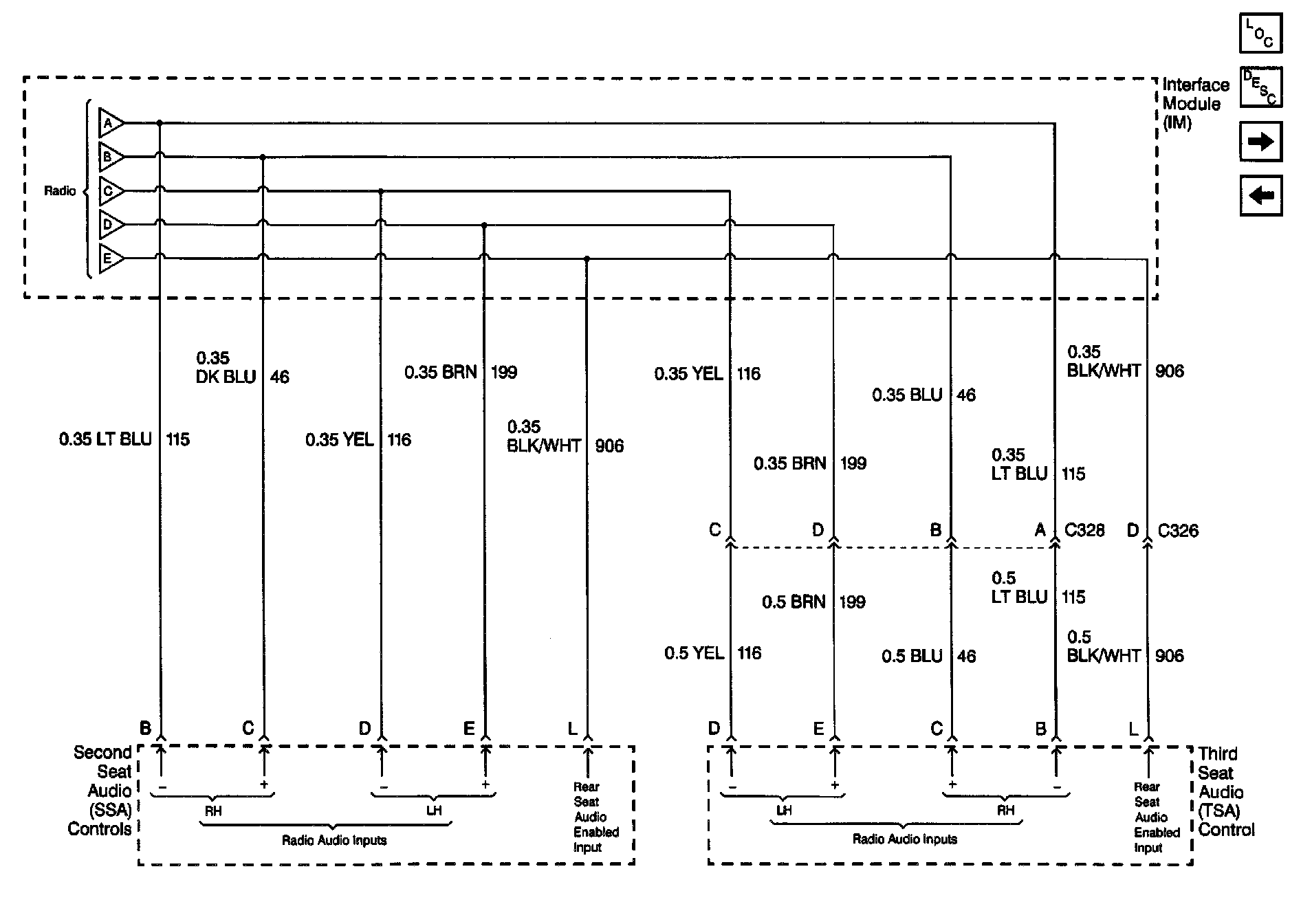

Video System Schematics: Radio Audio Channel Outputs:

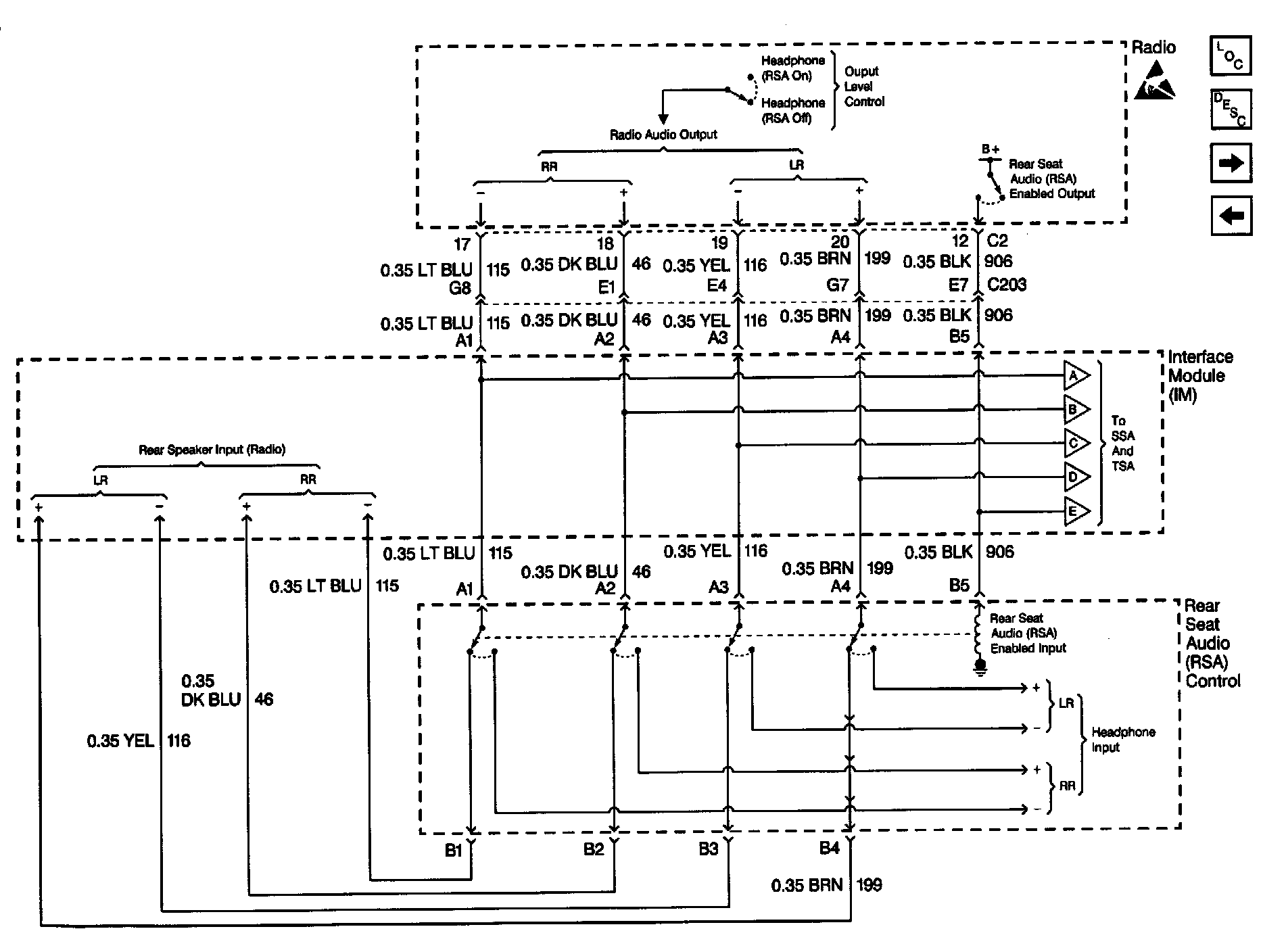

Video System Schematics: Radio Audio Channel Outputs:
Video System Schematics: Radio Audio Channel Outputs:
