Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Video System Schematics
>>
Power and Ground Distribution
Power and Ground Distribution

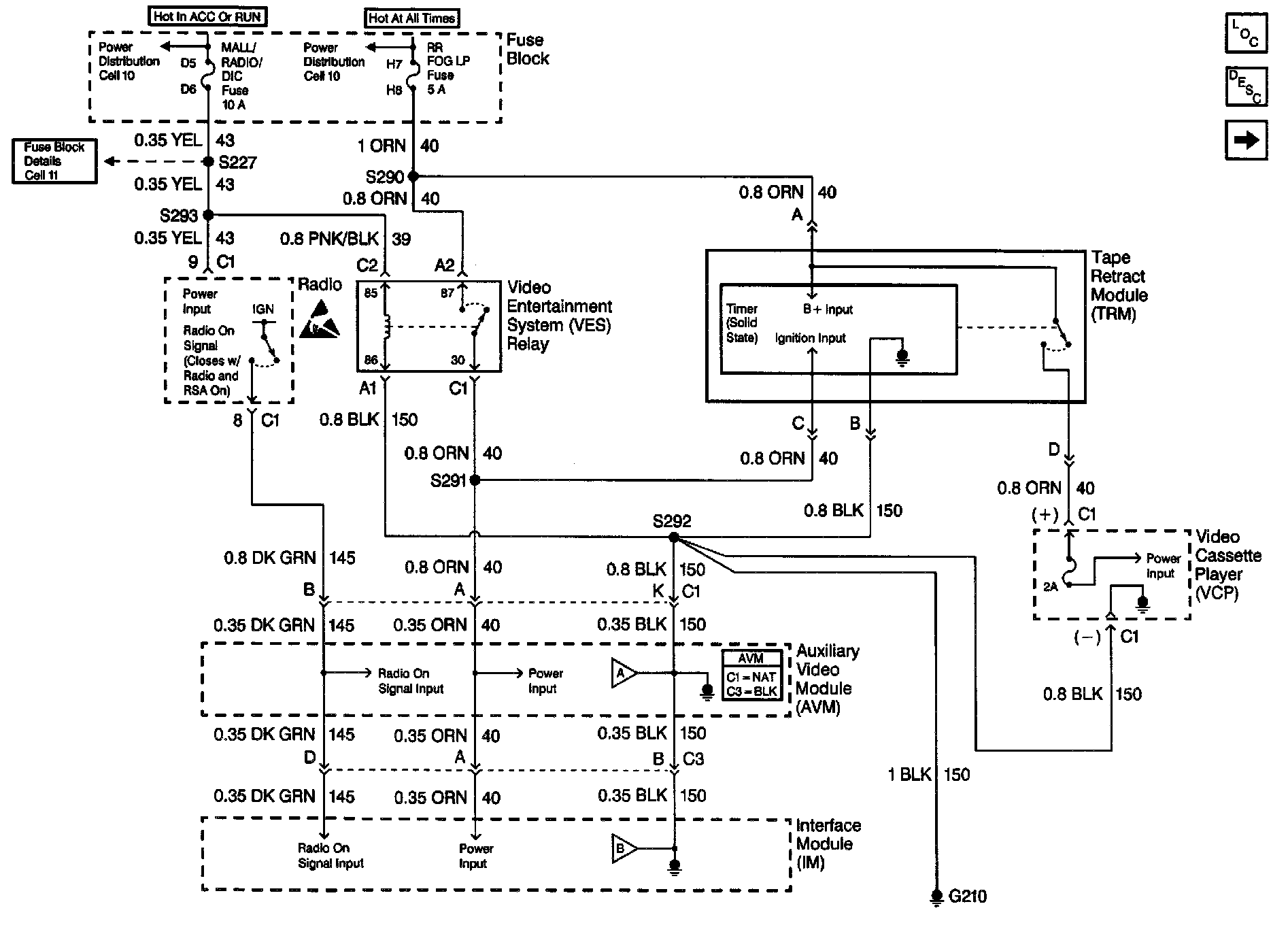

Video System Schematics: Power And Ground Distribution:
