Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio/Audio System Schematics
>>
Windshield Antenna, PCM
Windshield Antenna, PCM

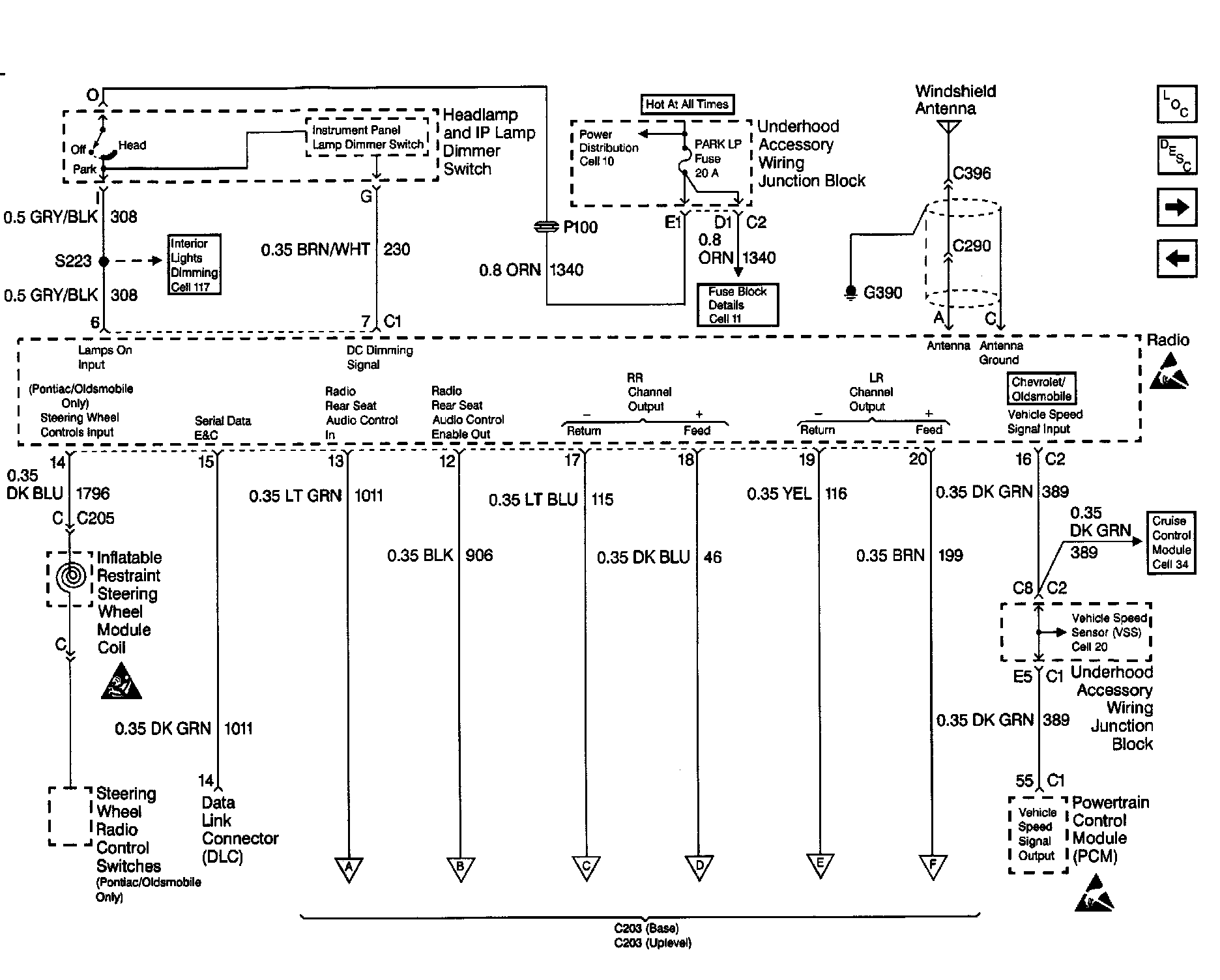

Radio/Audio System Schematics: Windshield Antenna, PCM:
