Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>
Interior Lamp And Multi Function Switch, Vanity Mirror
Interior Lamp And Multi Function Switch, Vanity Mirror

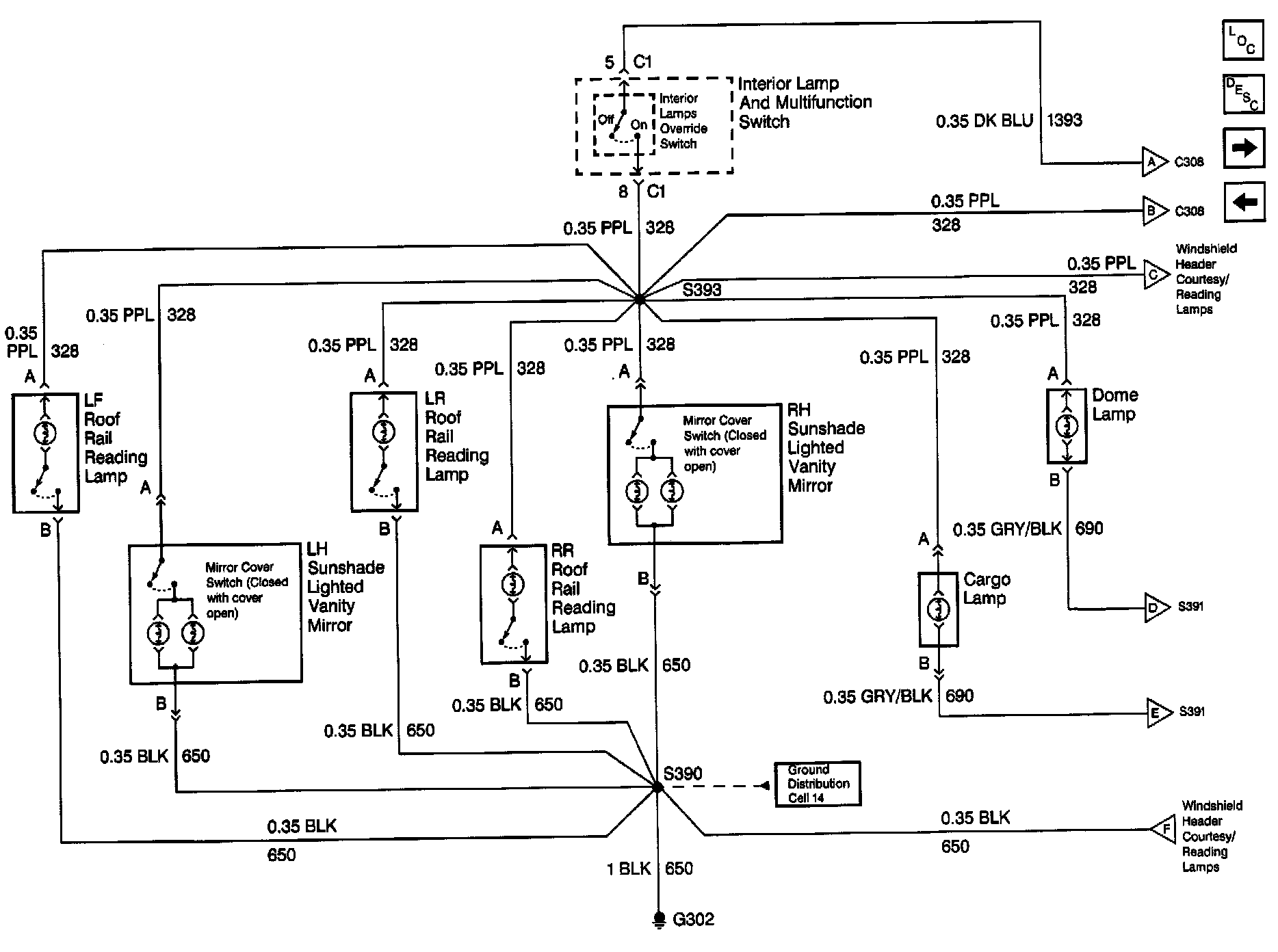

Interior Lights Schematics: Interior Lamp And Multi Function Switch, Vanity Mirror:
