Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

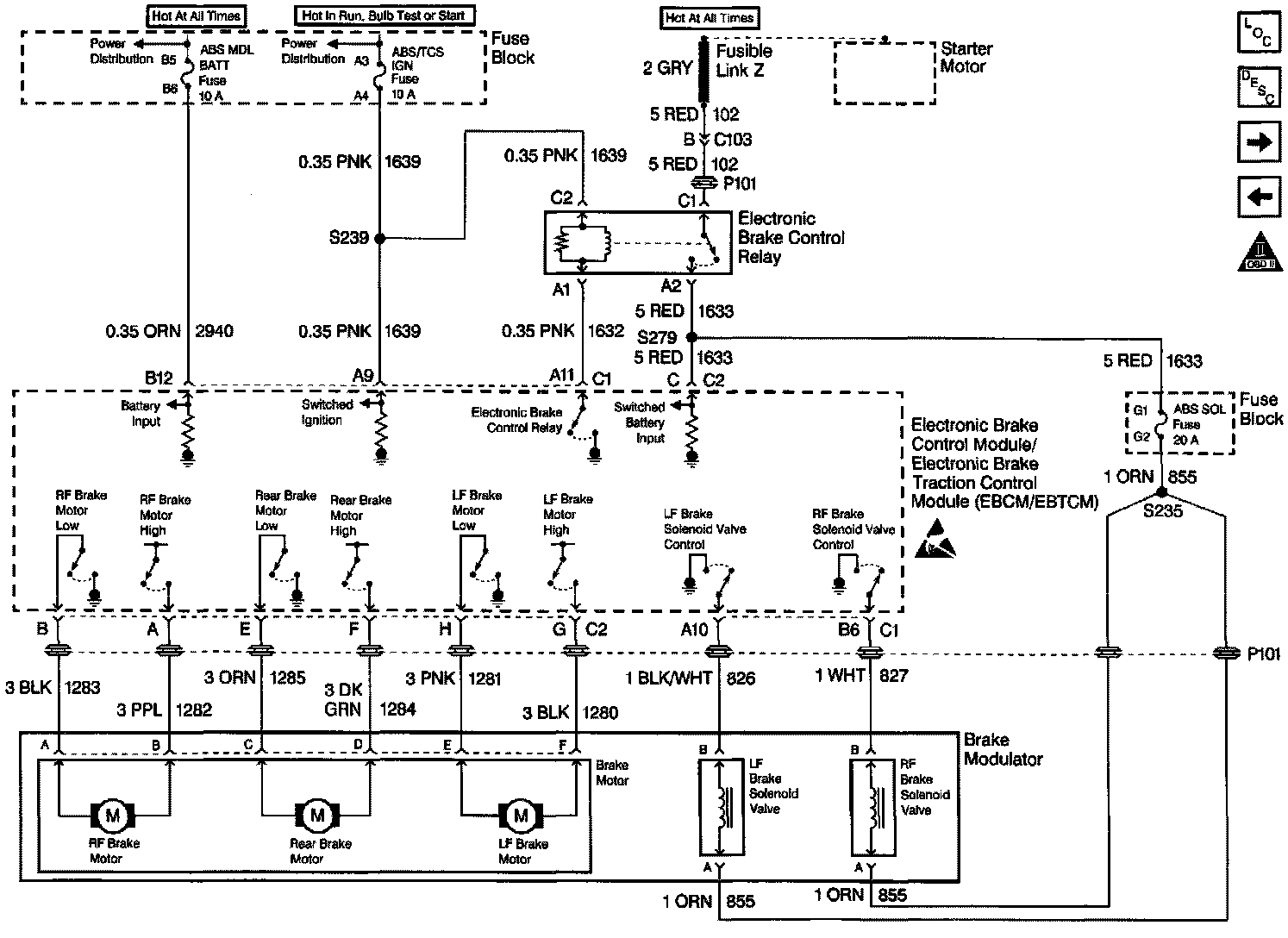

Page 1 Of 3:

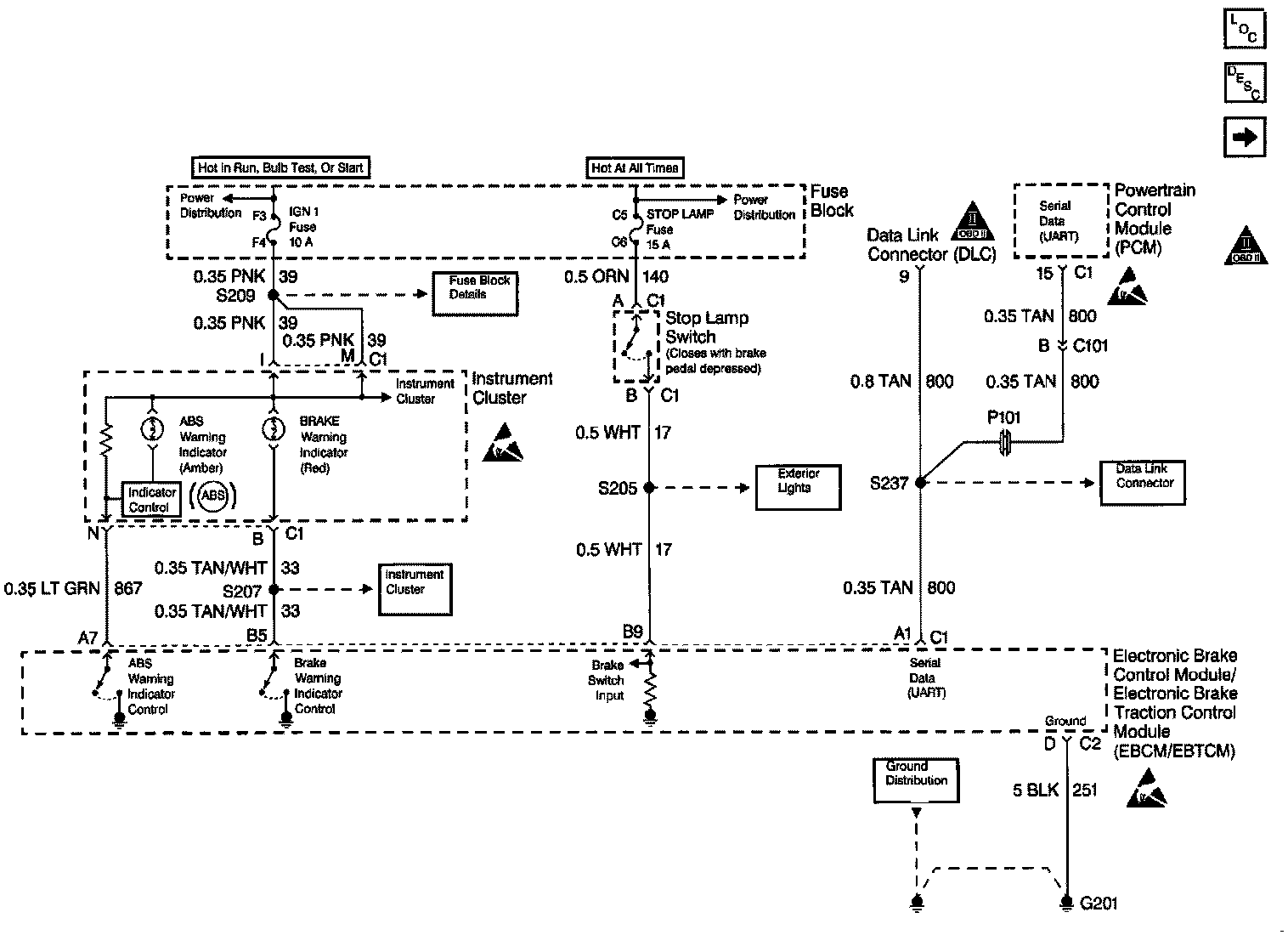

Page 2 Of 3:

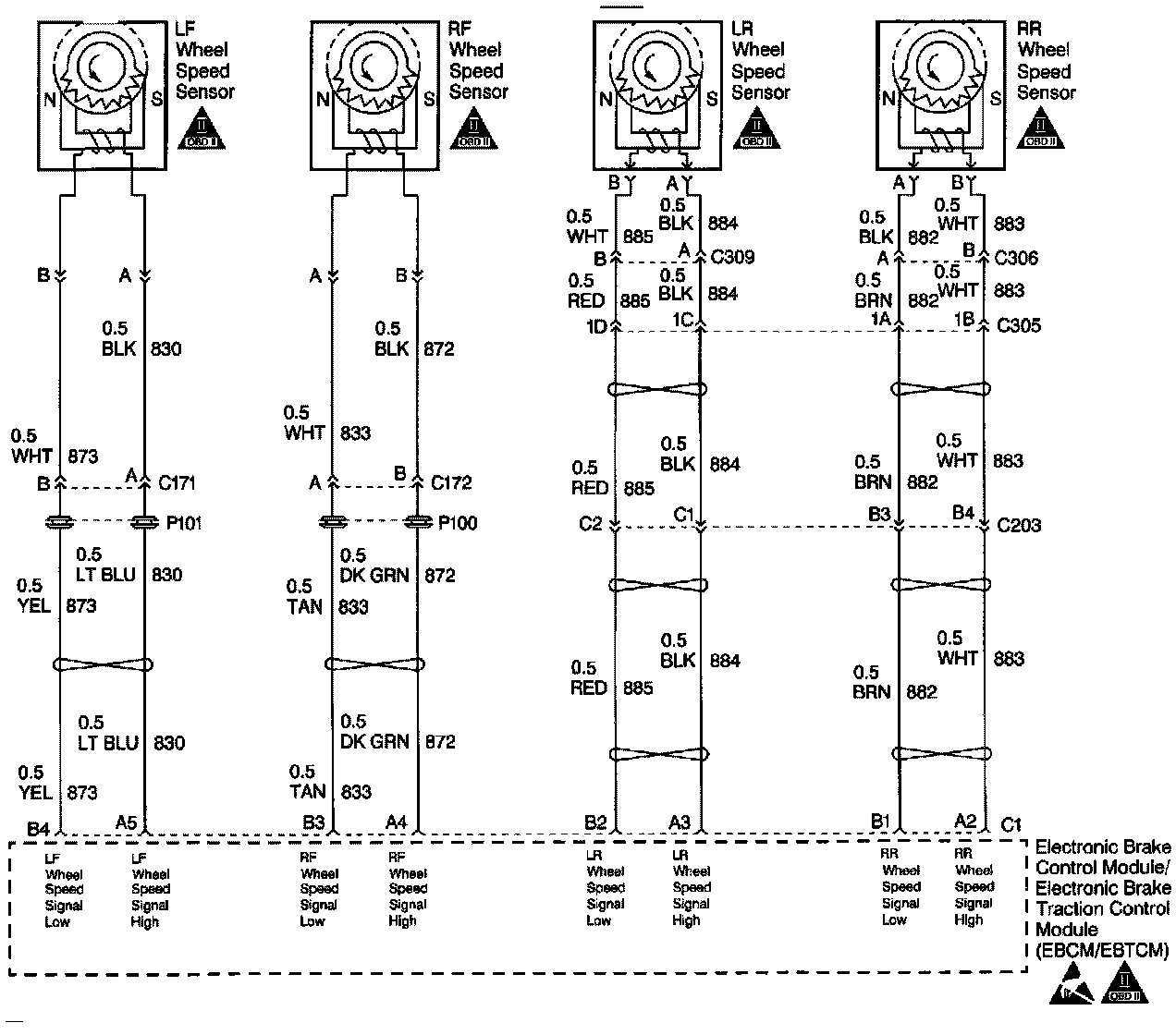

Page 3 Of 3:

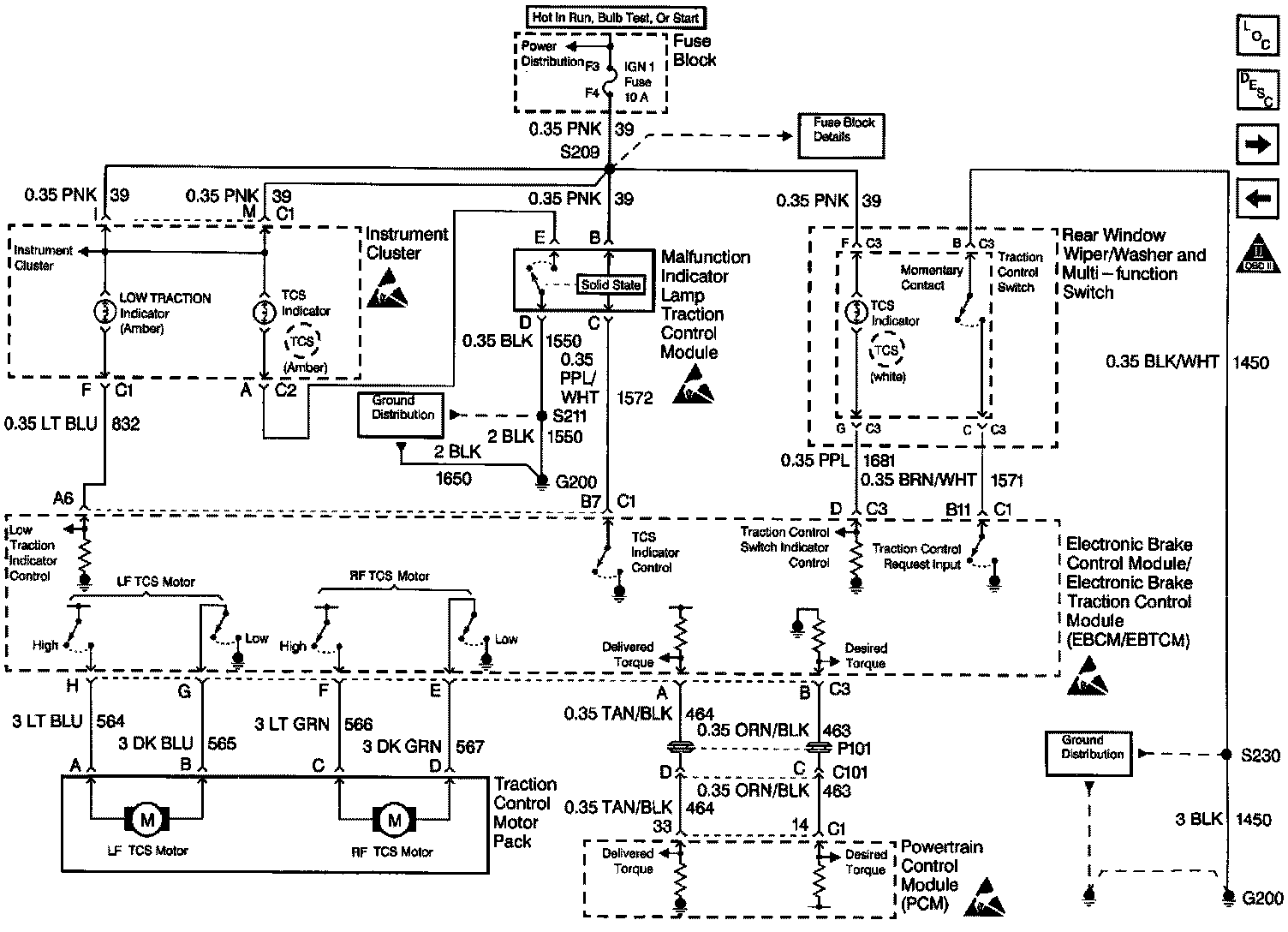

Page 1 Of 4:

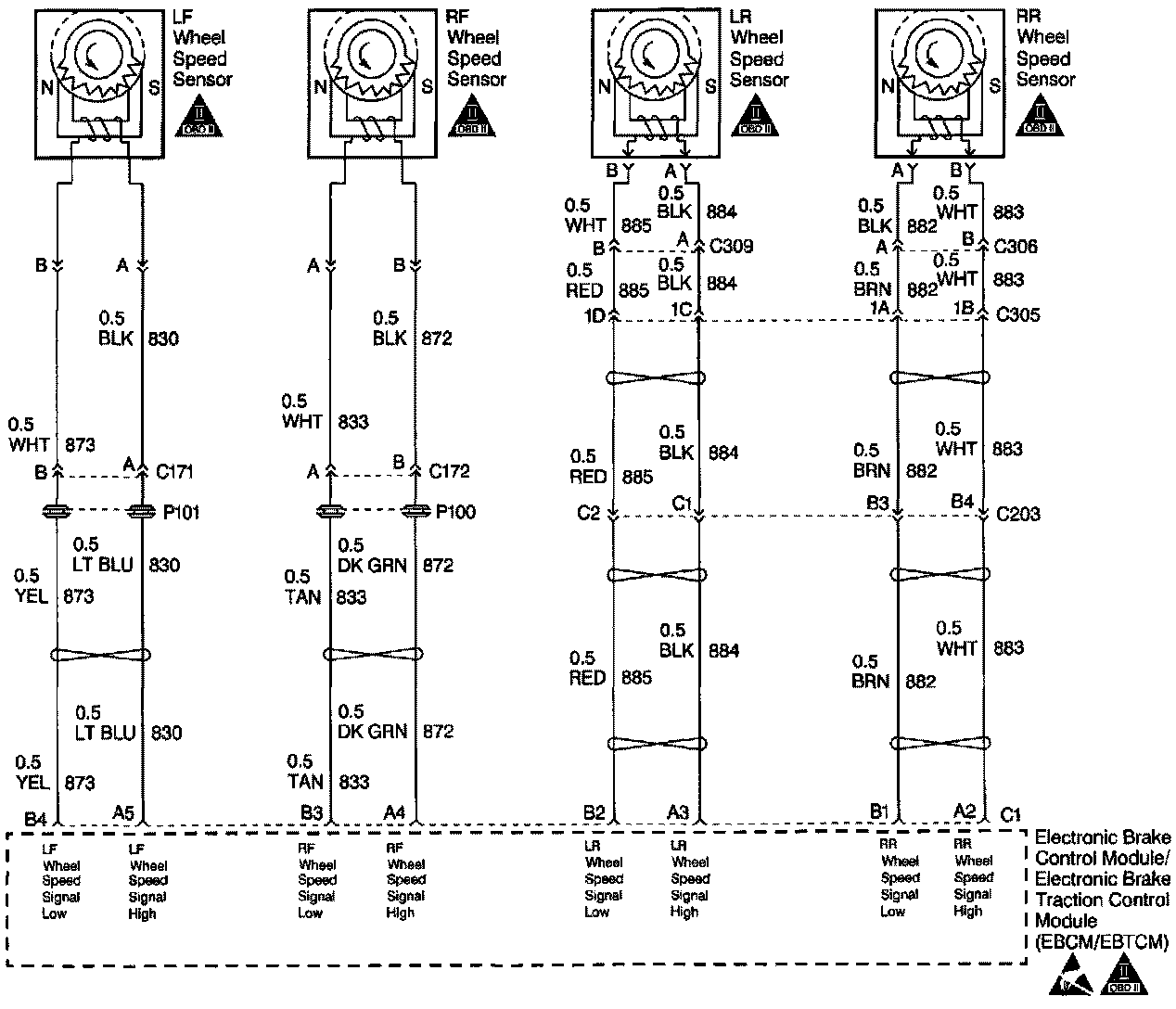

Page 2 Of 4:

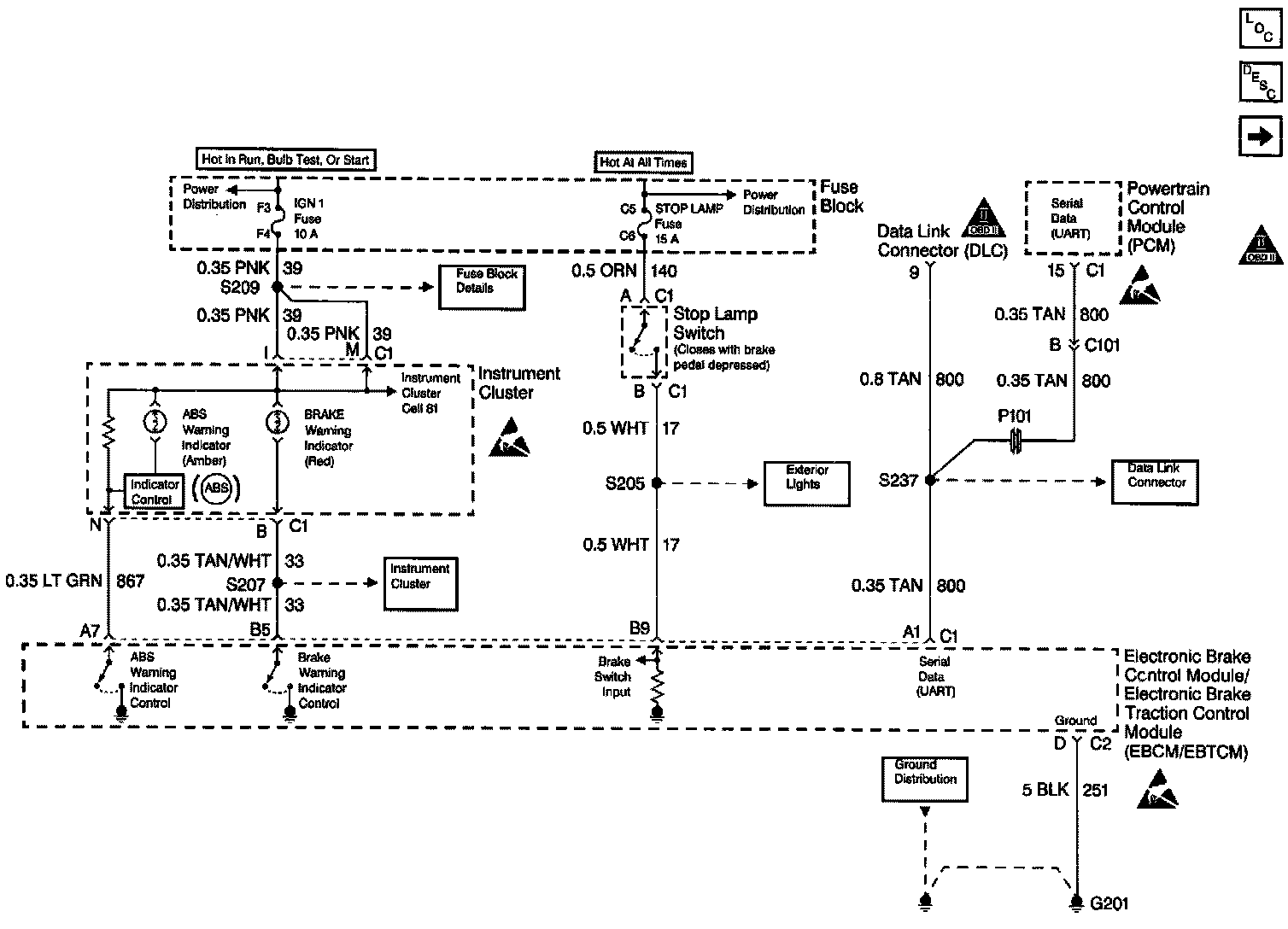

Page 3 Of 4:

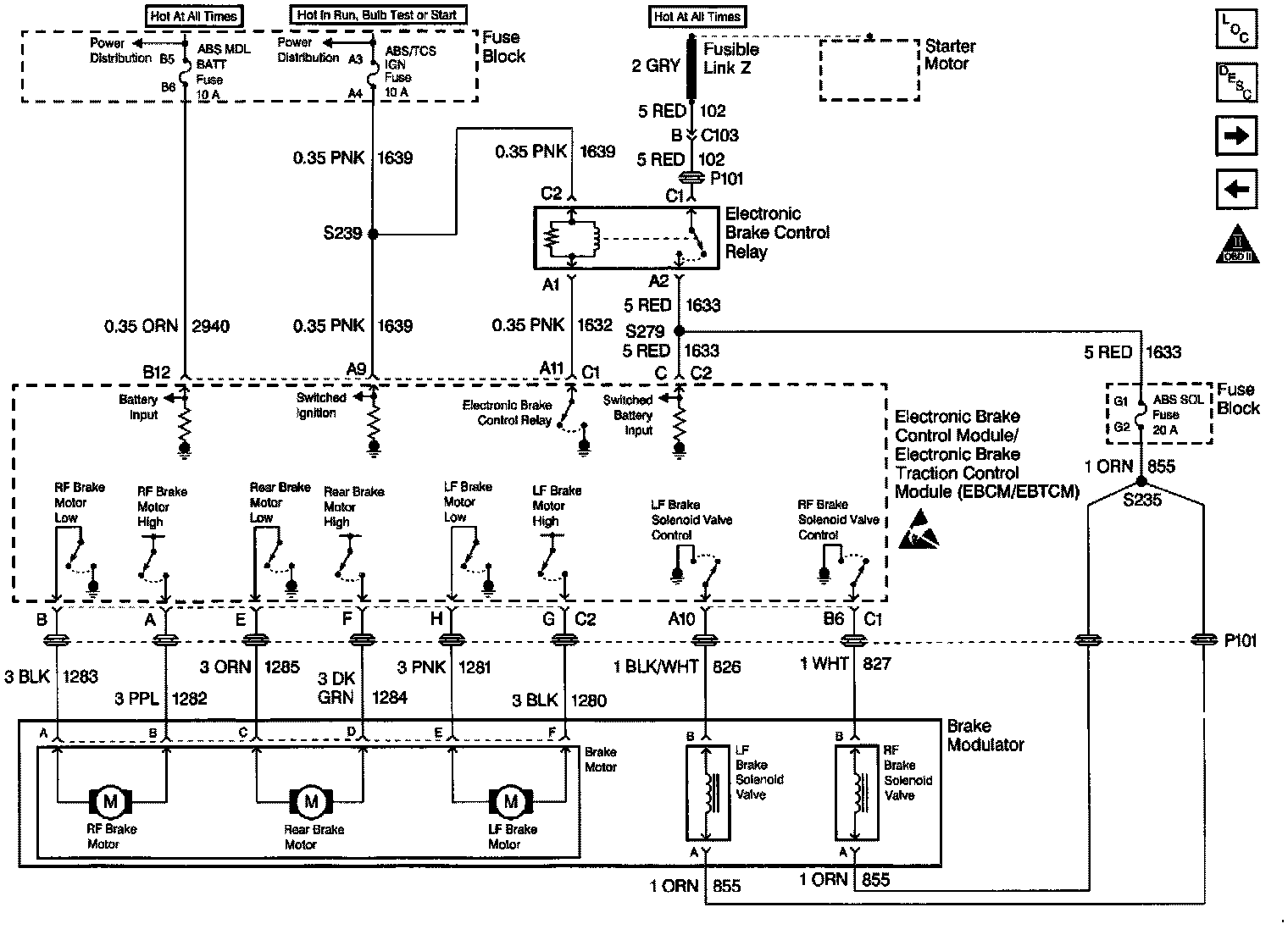

Page 4 Of 4:
