Torque Converter Clutch Solenoid, A/T
>>

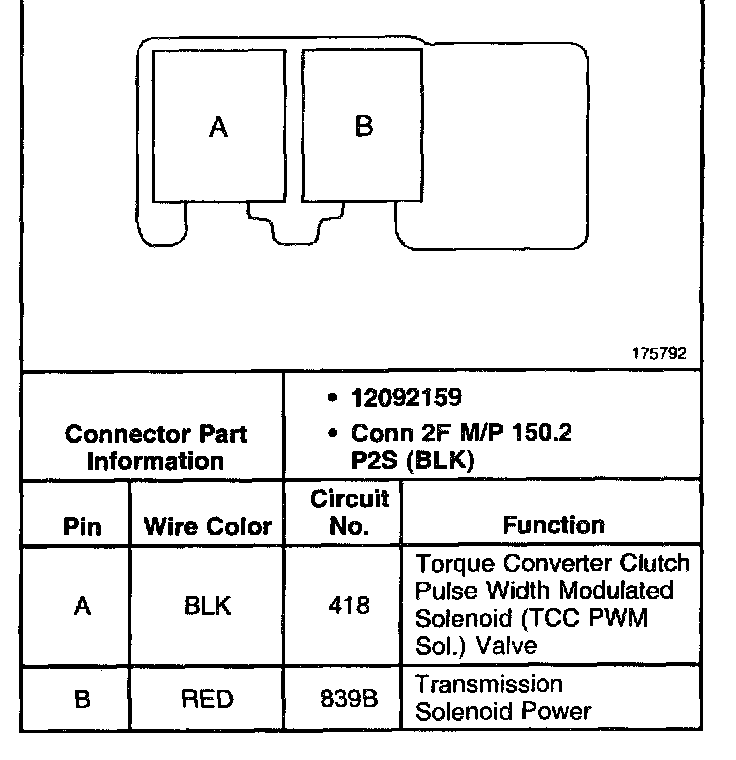

Torque Converter Clutch Pulse Width Modulated SOL Valve CONN.
Torque Converter Clutch Pulse Width Modulated SOL Valve CONN.
