Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
Radio/Stereo

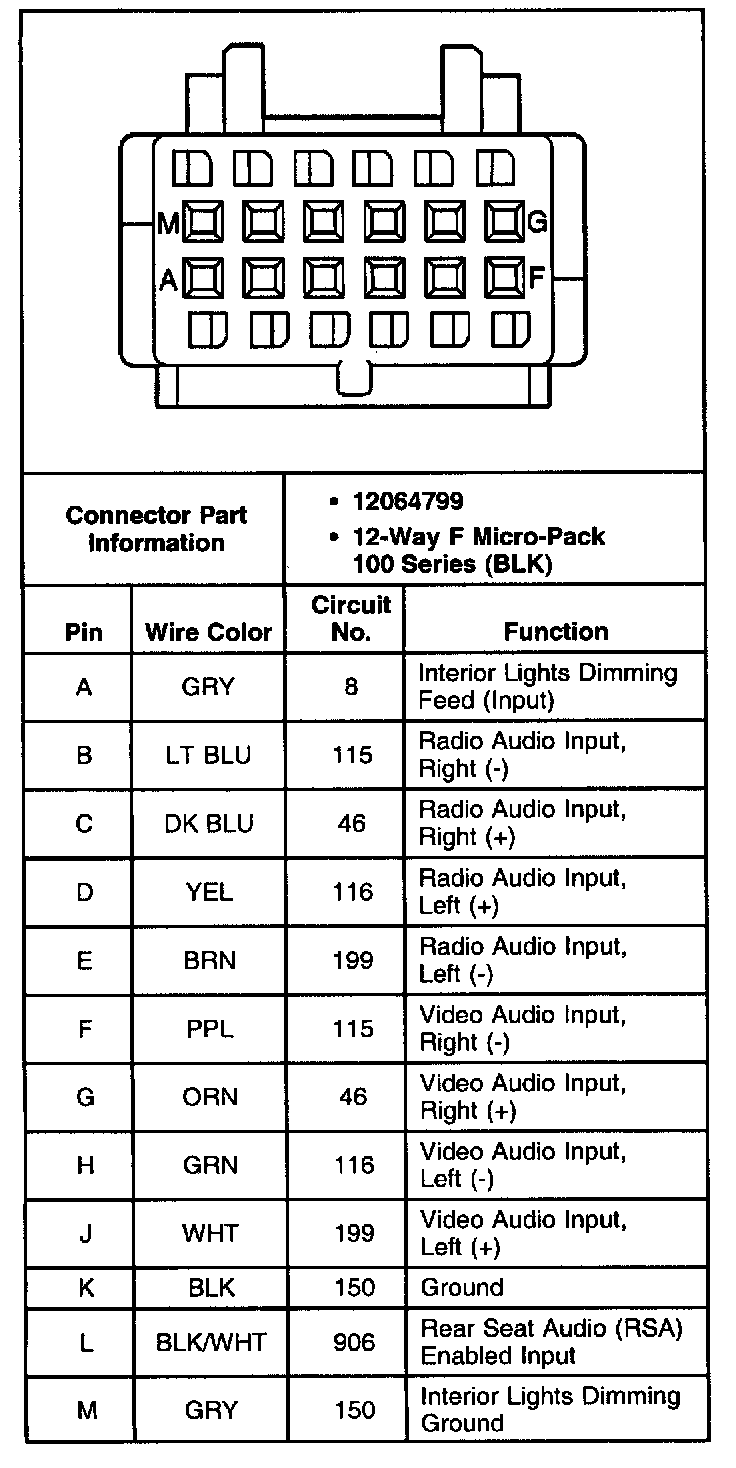

Radio Rear Seat Audio Control:

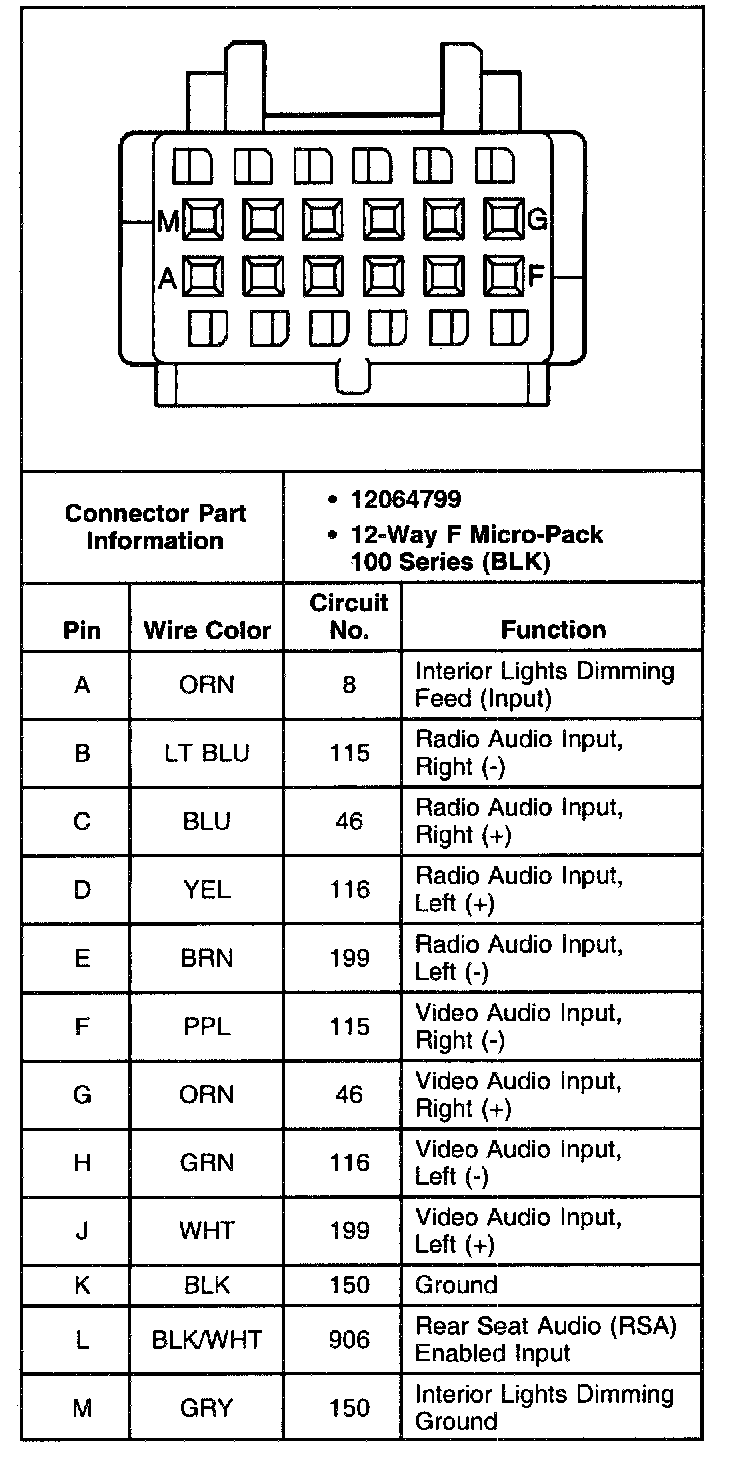

Second Seat Audio (SSA) Control:
Third Seat Audio (TSA) Control:

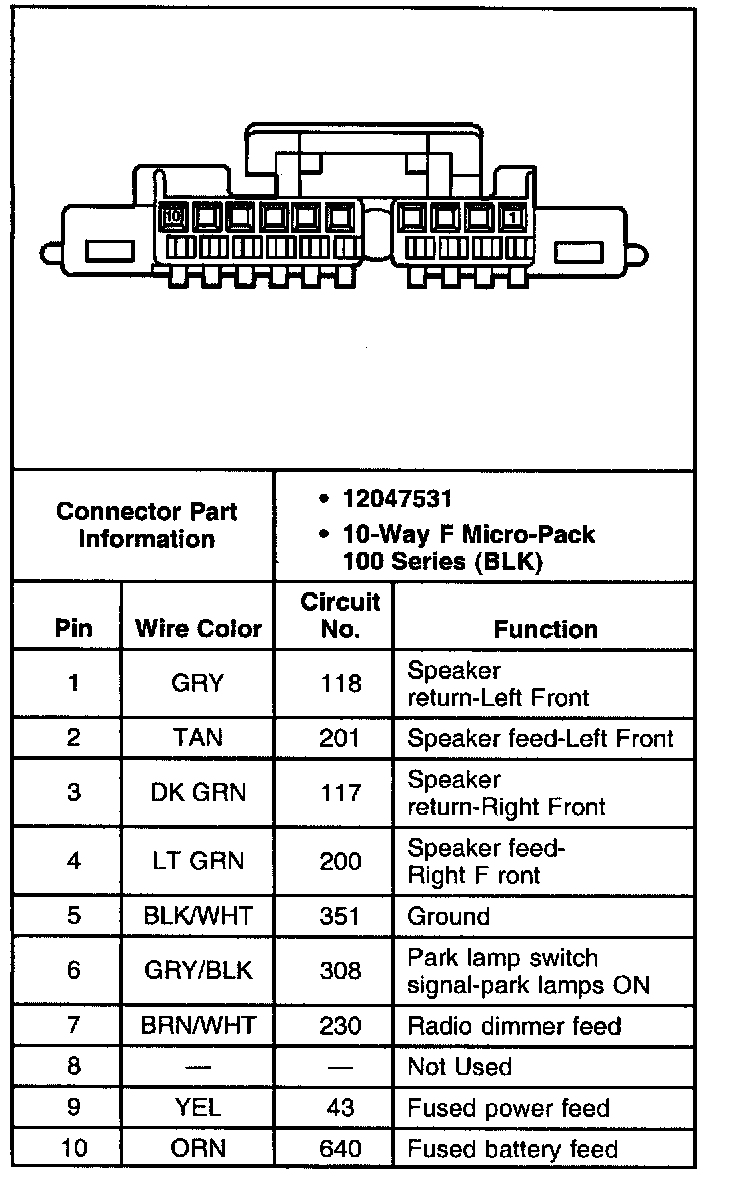

Radio C1:

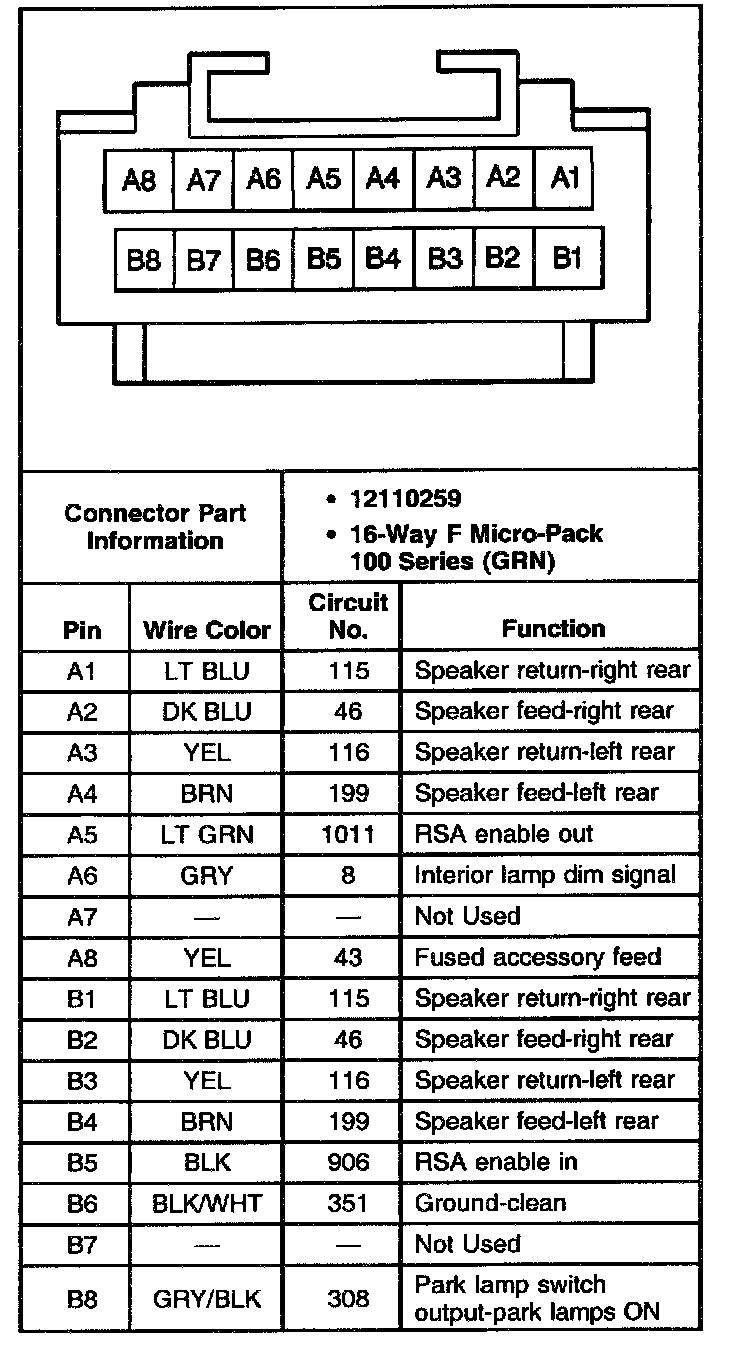

Radio C2:

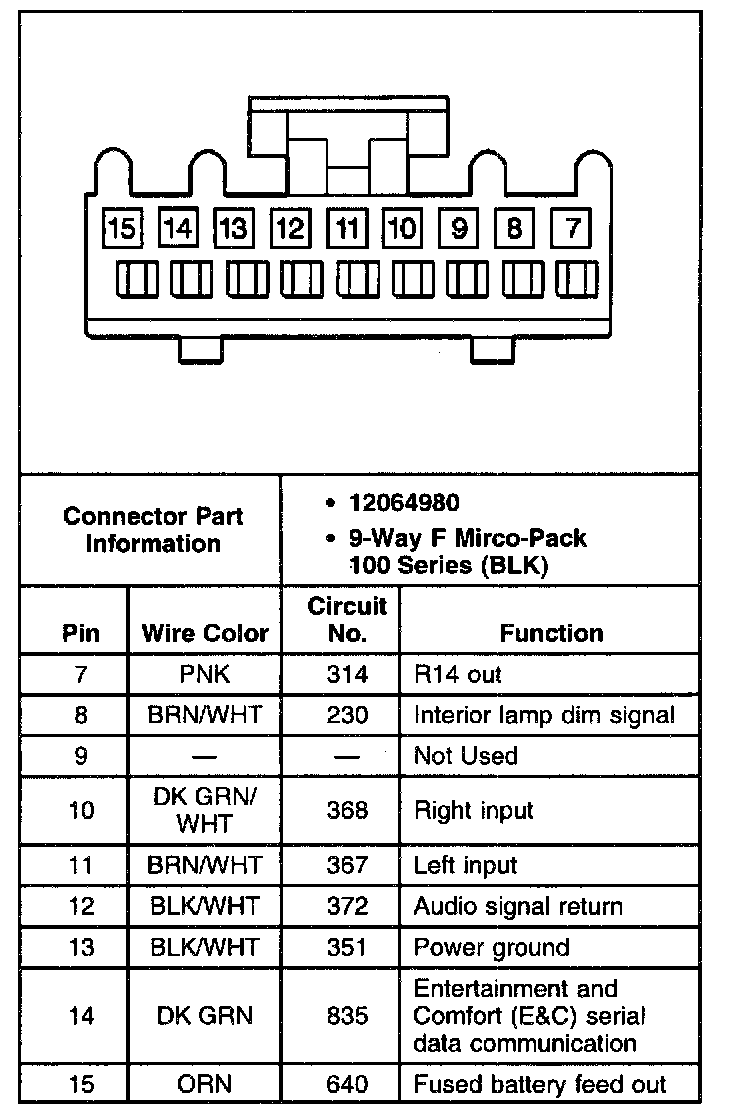

Radio C3:
