Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
>>
Door Lock Switch, Left
Door Lock Switch, Left

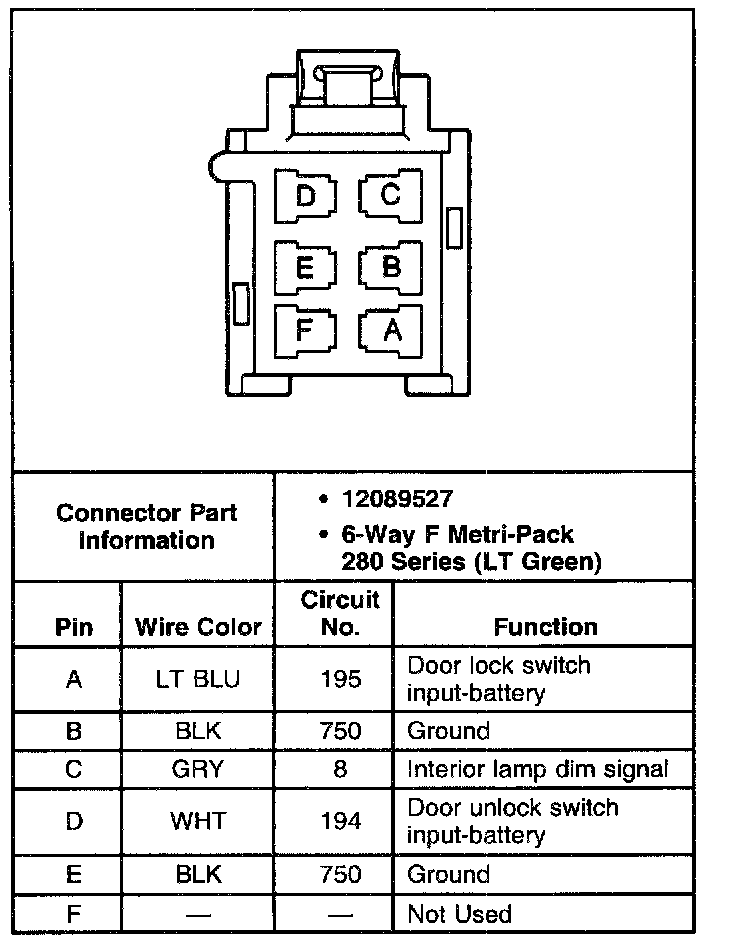

Left Door Lock Switch:
