Door Lock C1 (Ajar Indicator Switch), Left Front
Door Lock C1 (Ajar Indicator Switch), Left Front

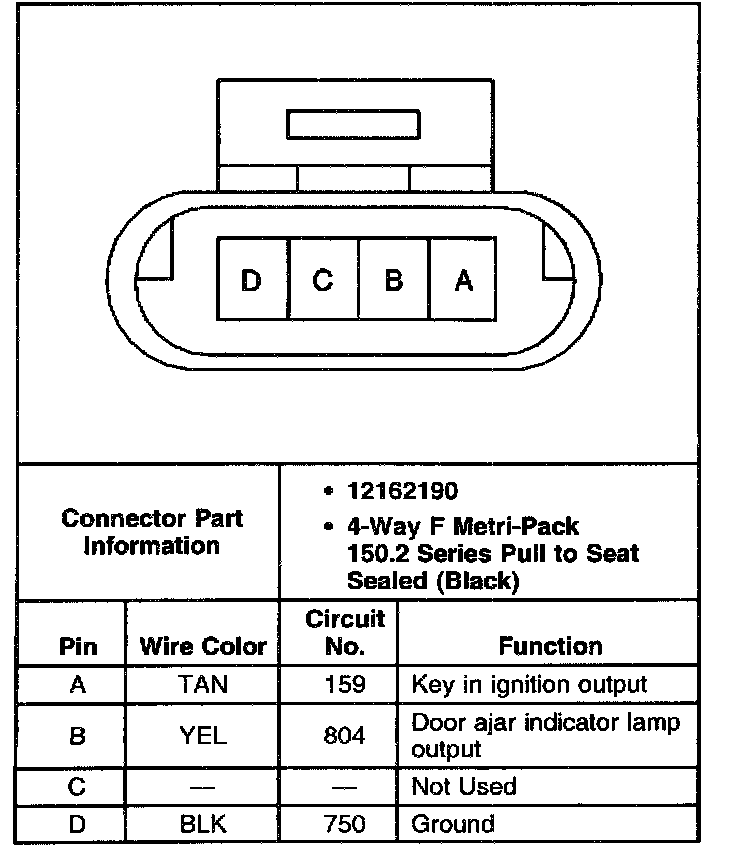

Left Front Door Lack C1 (Ajar Indicator Switch):
