Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Switch
>>
Ajar Indicator Switch
Ajar Indicator Switch

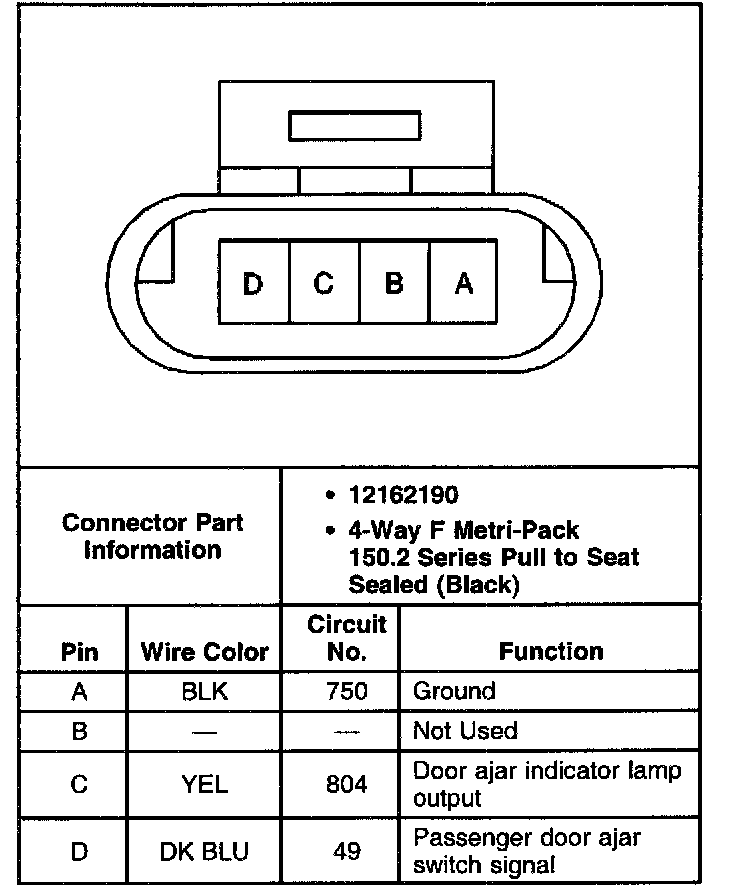

Right Front Door Lock C1: Ajar Indicator Switch:
