Home
>>
Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Underhood Accessory Wiring Junction Block
>>
C4
C4

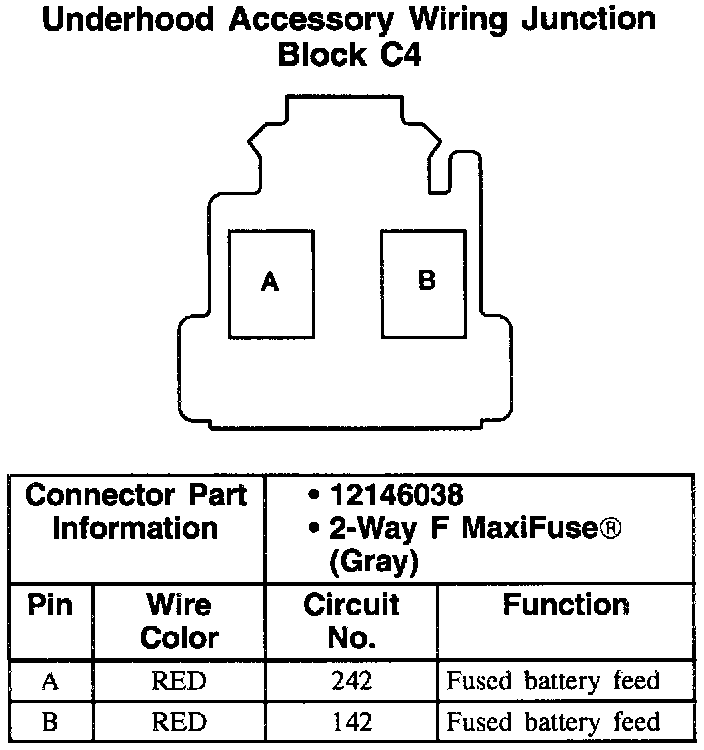

Underhood Accessory Wiring Junction Block C4:
