Park Brake Cable Replacement (Front Cable)

REMOVAL PROCEDURE
- Tools Required
- J 37043 Parking Brake Cable Release Tool





1. Remove the left-side instrument panel insulator.
2. Remove the left-side carpet retainer.
3. Fold back the carpet for access.
4. Raise the vehicle. Support the vehicle.

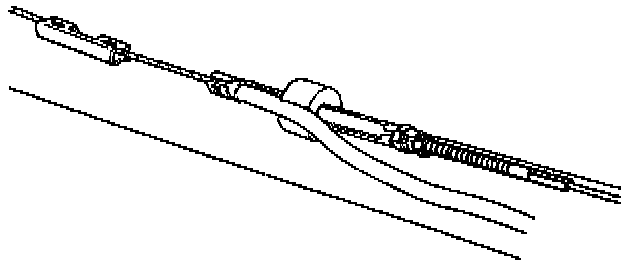

5. Remove the parking brake cable at the equalizer.

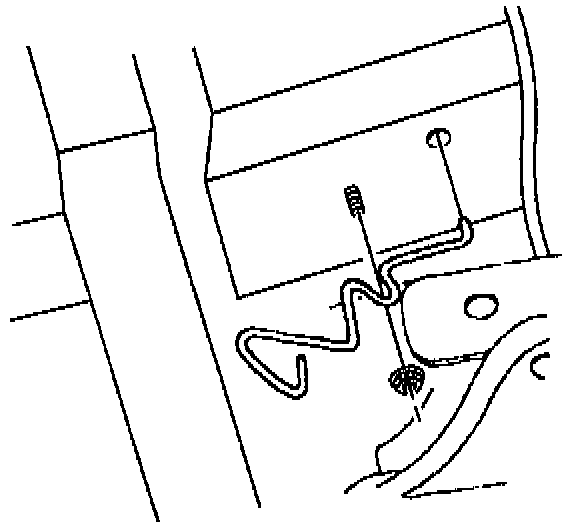

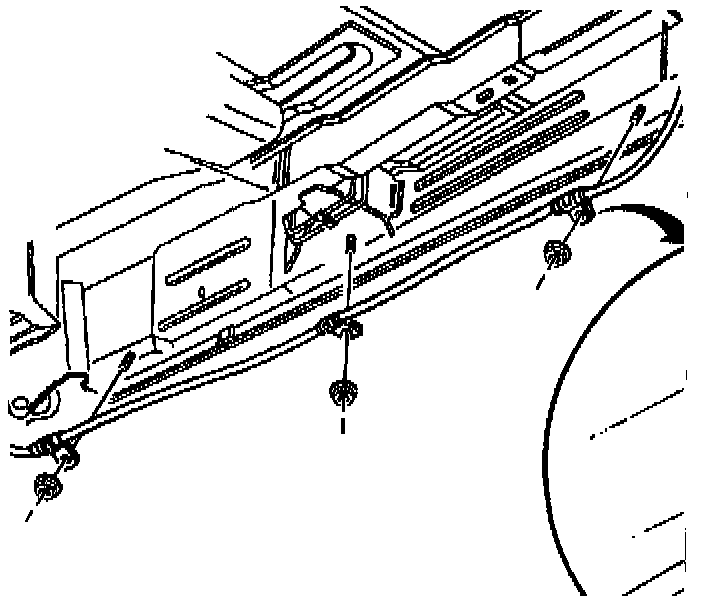

6. Remove the parking brake cable brackets at the body frame rail.
7. Lower the vehicle.





8. Remove the parking brake cable retaining clip.
9. Remove the cable button end from the lever clevis.
10. Use the J 37043 in order to remove the cable from the lever.
11. Remove the grommet plug.
12. Remove the front parking brake cable.

INSTALLATION PROCEDURE





1. Install the front parking brake cable on the vehicle.
2. Install the grommet plug.
3. Install the cable to the parking brake lever.
4. Install the cable button end to the lever clevis.
5. Install the parking brake cable retaining clip.
6. Raise the vehicle. Support the vehicle.

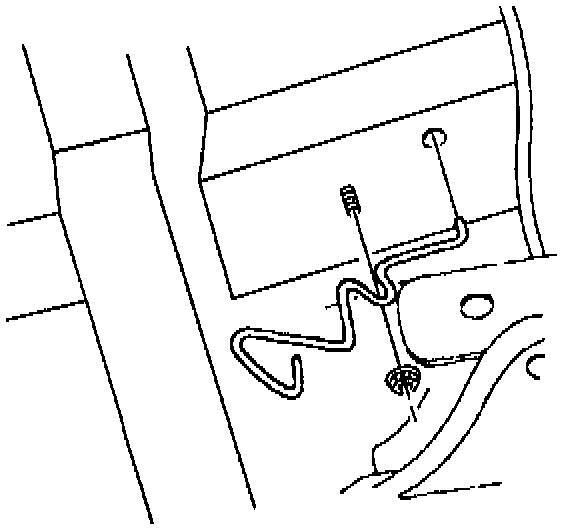

7. Install the parking brake cable brackets at the body frame rail.

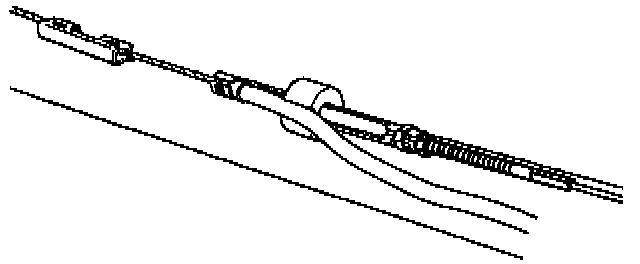

8. Install the parking brake cable to the equalizer.
9. Lower the vehicle.
10. Position the carpet in place.
11. Install the left-side carpet retainer.
12. Install the left-side instrument panel insulator.
13. Adjust the park brake cable.
