Home >> Chevy Truck >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams

Power Door Lock Actuator: Diagrams

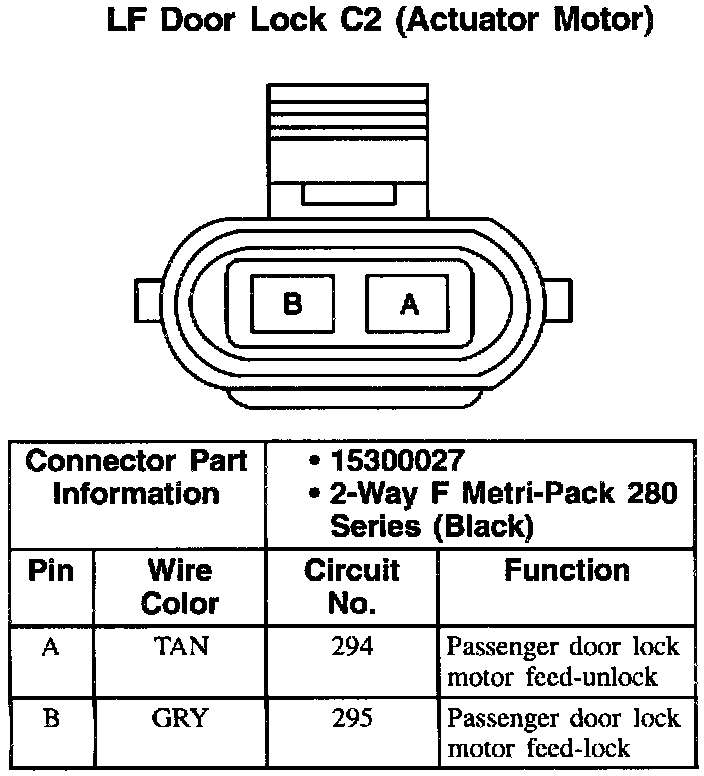

LF Door Lock C2 (Actuator Motor):
