Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Connector Views
>>
Door Lock
>>
C1
C1

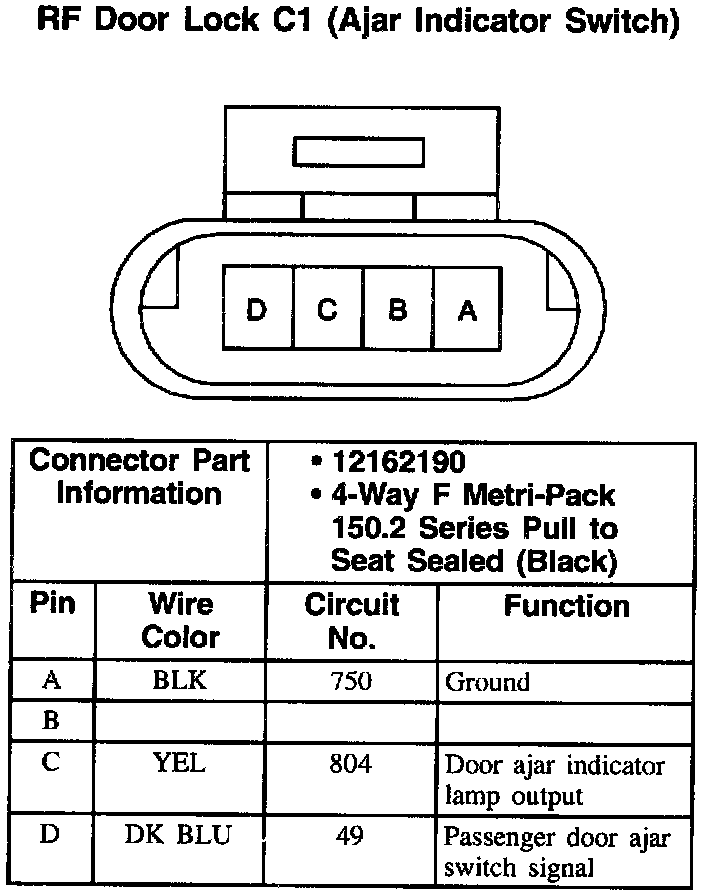

RF Door Lock C1 (Ajar Indicator Switch):
