Extended Wheel Base

Adjustment Procedure

1. Remove the right rear quarter lower trim panel.
2. Disconnect the negative battery cable.

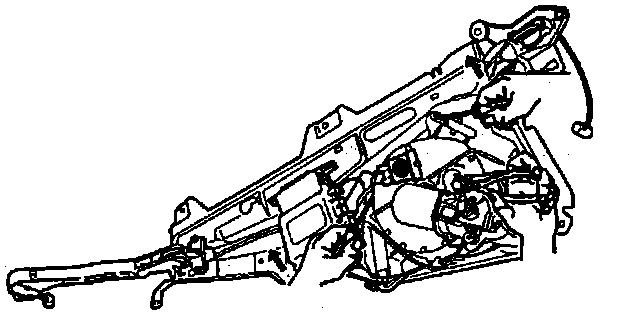

3. Position the sliding door center roller bracket at the front of the track. Ensure that the bracket is 25 mm (1 in) from the forward radius and that the cable tension slot is accessible in the window located on the PSD motor clutch assembly.
4. Use two medium Phillips head screwdrivers in order to move the cable tension indicators to the uppermost portion of the tension indicating windows. Hold the tension indicators in.place. in order to reduce the amount of force that is required in order to turn the adjuster nut.
5. Complete the following steps simultaneously until you feel resistance in the cable. Resistance indicates that the cable is taut:
- Grasp the tension adjusting nut with pliers.
- Pull the nut outward.
- Turn the nut counter-clockwise.
6. Release the outward pressure on the nut and allow the nut to lock into place.
7. Release the cable tension indicators.
8. Verity that the cable tension indicators are located between both the front and rear double blocks. The blocks are marked on the PSD module housing. The tension is acceptable if the indicators are slightly high but are touching the indicator marks. If the indicators are below the indicator marks, Repeat Step 6 through Step 11 until you obtain enough tension. If the tension is too high, push in on the adjuster nut in order to release the tension, then repeat Step 6 through Step 11.
9. Operate the sliding door manually.
10. Position the door as described in Step 5. Verify; that the tension is. correct. If the tension is incorrect, repeat Step 6 through Step 11 until you obtain correct tension.
11. Install the right rear quarter lower trim panel.
12. Connect the negative battery cable.
13. Perform the reinitialization procedure.
