Third Seat Audio Control Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.
2. Open the third seat passenger side arm rest cover.

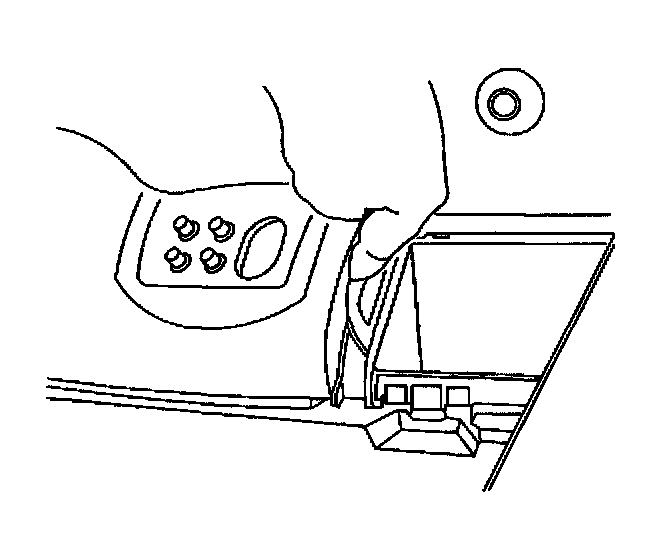

3. Using your finger, release and remove the rear quarter trim panel with the third seat audio control from the trim panel.

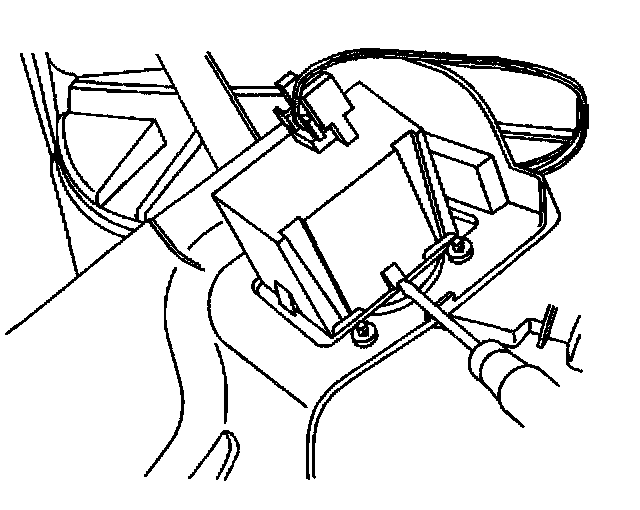

4. Release the locking tabs using a flat-bladed tool and remove the third seat audio control from the rear quarter trim panel.

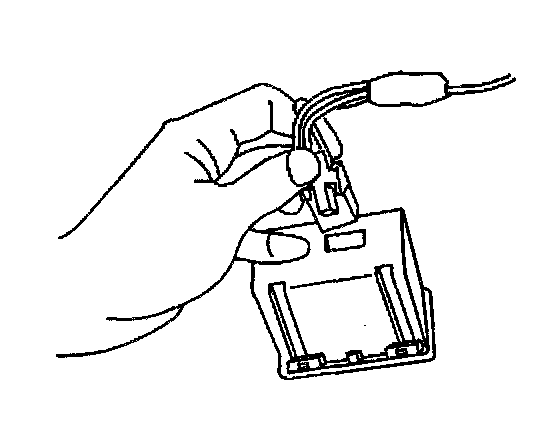

5. Disconnect the electrical connector from the third seat audio control.

INSTALLATION PROCEDURE




1. Install the third seat audio control to the rear quarter trim panel.
2. Press the third seat audio control until it locks into place.
3. Connect the electrical connector to the third seat audio control.

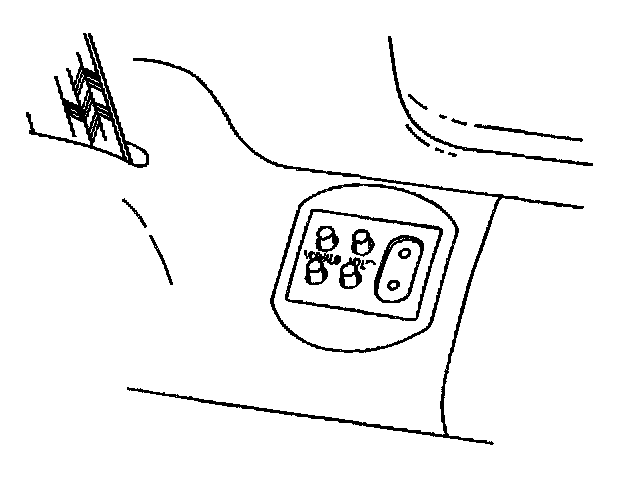

4. Install the rear quarter trim panel with the third seat audio control to the trim panel.
5. Connect the negative battery cable.
