Video Screen Hinge Cover Replacement

REMOVAL PROCEDURE

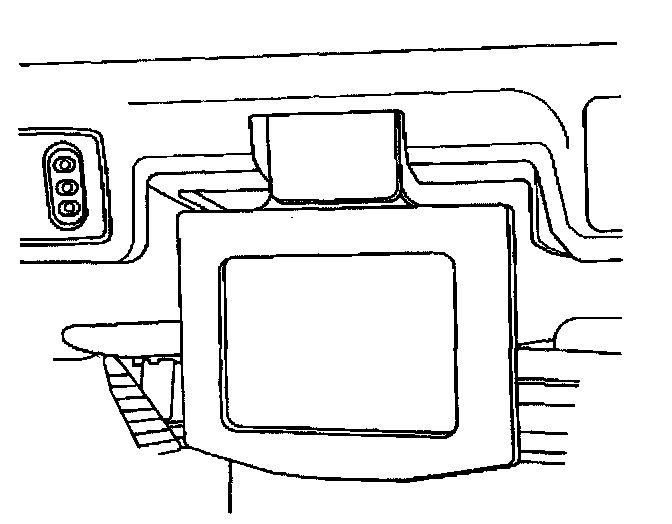

1. Press the video screen release button and flip the video screen to the down position.




2. Remove the two hinge cover screws.
3. Remove the hinge cover from the hinge.

INSTALLATION PROCEDURE




1. Install the hinge cover to the hinge.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the hinge cover screws.

Tighten
Tighten the hinge cover screws to 2 N.m (18 lb in).

3. Return the video screen to the up position.
