Center Console - Video Cassette Player Replacement

REMOVAL PROCEDURE
1. Remove the video cassette player.

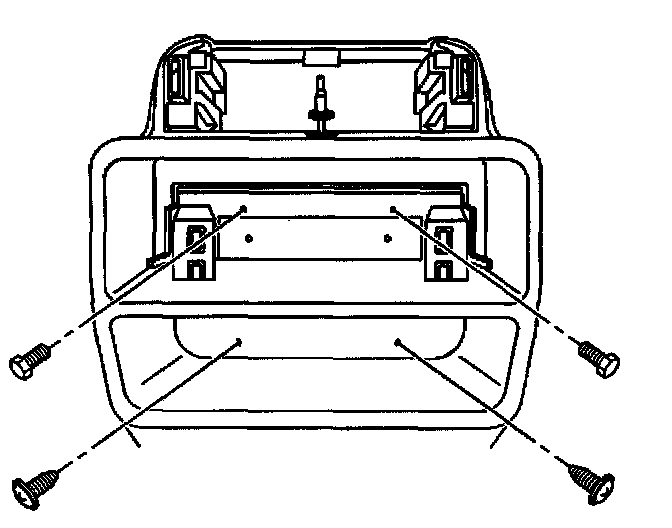

2. Reach through the video cassette player opening and remove the two bolts.
3. Reach through the video cassette storage opening and remove the two screws.
4. Grasp the center console and slide it towards the rear of the vehicle.
5. Remove the center console from the vehicle.

INSTALLATION PROCEDURE
1. Loosely install the center console floor bracket to the center console, using the two screws located in the video cassette storage opening.
1.1. Make sure the hooked end of the bracket is pointing towards the bottom of the center console.
1.2. The hooked end of the bracket will hook into the floor bracket when properly installed.
2. Install the center console to the vehicle, making sure it's fully seated against the H-bracket.
3. Grasp the center console and slide to towards the front of the vehicle making sure the console bracket is hooked onto the floor bracket.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

4. Reach through the video cassette storage opening and install the two screws.

Tighten
Tighten the video cassette storage screws to 2 N.m (18 lb in).

5. Reach through the video cassette player opening and install the two bolts.

Tighten
Tighten the video cassette storage bolts to 2 N.m (18 lb in).

6. Install the video cassette player.
