Auxiliary Video Module Replacement

REMOVAL PROCEDURE

IMPORTANT: When replacing the auxiliary video module with a new component, you must also replace the video screen display module. These components are required to be replaced with one another.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.

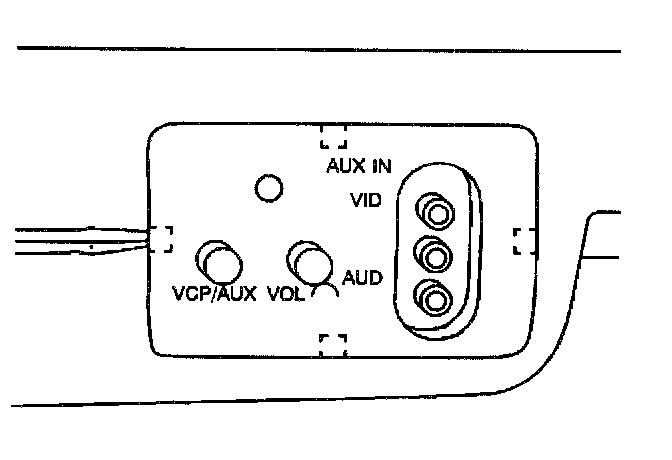

2. Carefully release the locking tabs using a flat-bladed tool in the locations as indicated.
3. Remove the auxiliary video module from the overhead entertainment console.

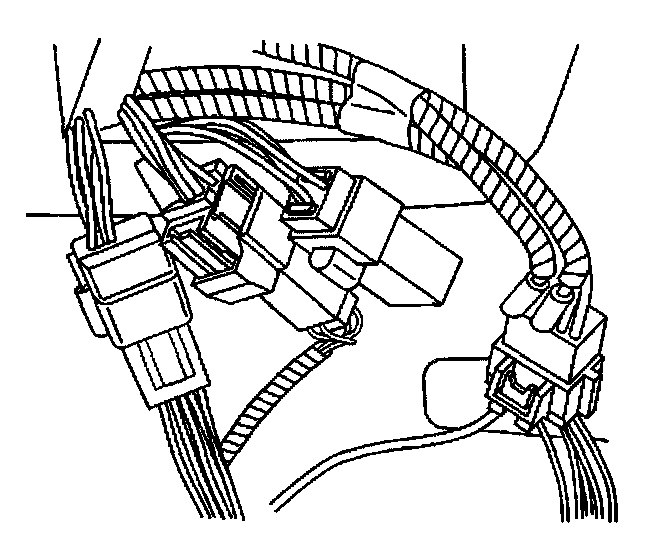

4. Disconnect the electrical connectors from the auxiliary video module.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the auxiliary video module.
2. Install the auxiliary video module to the overhead entertainment console.
3. Press the auxiliary video module until it locks into place.
4. Connect the negative battery cable.
