B1017

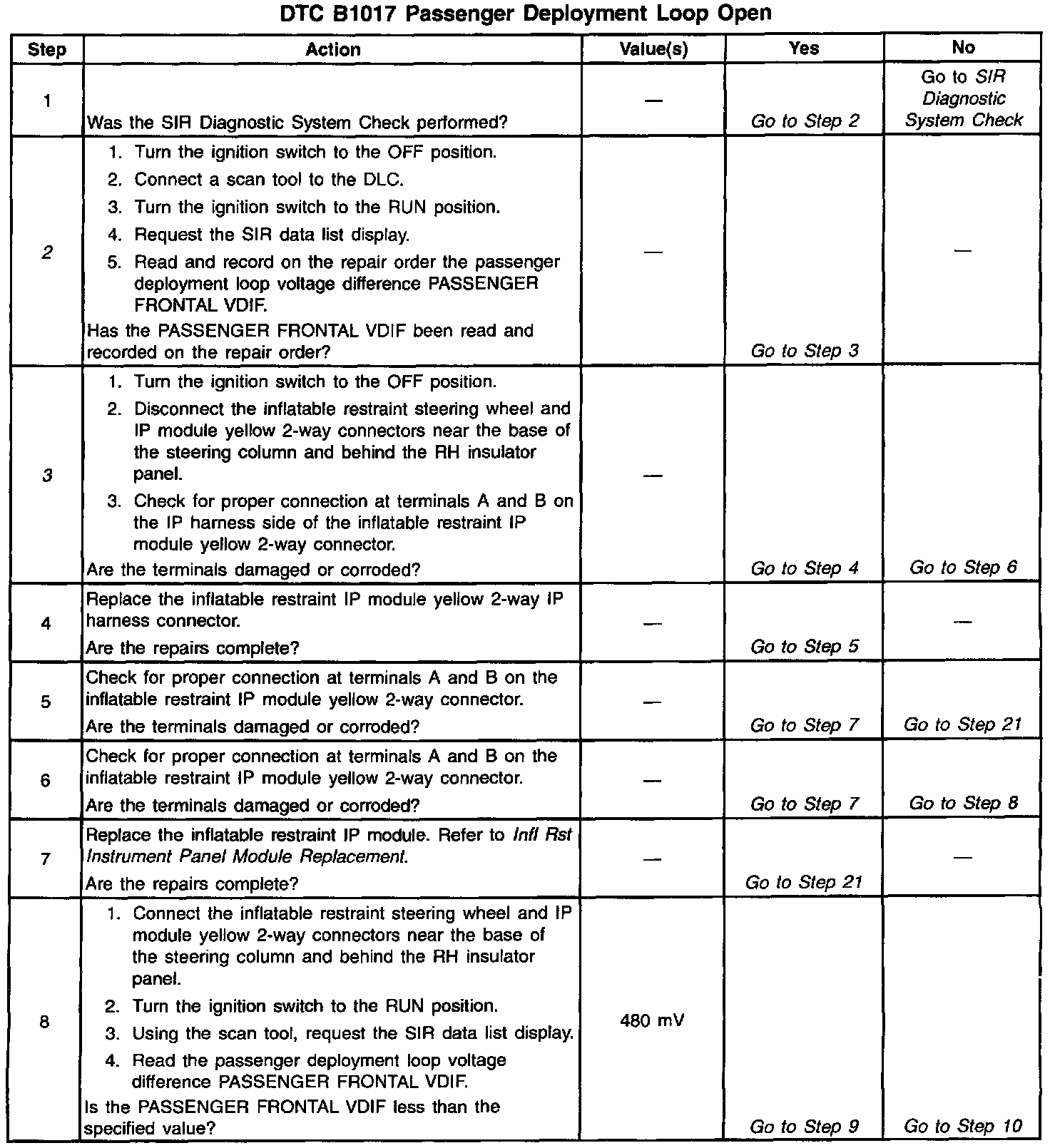

Diagnostic Chart:

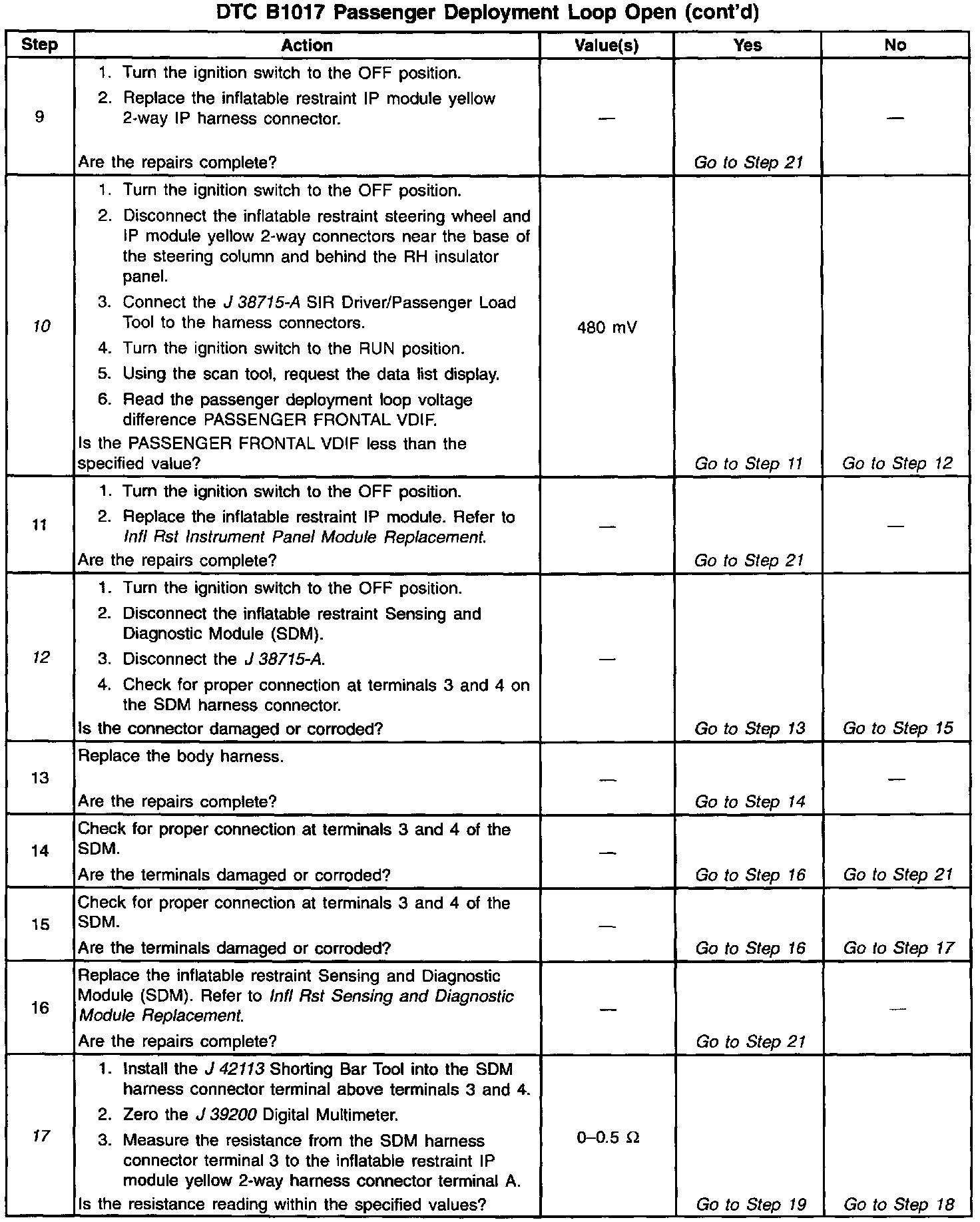

Diagnostic Chart:

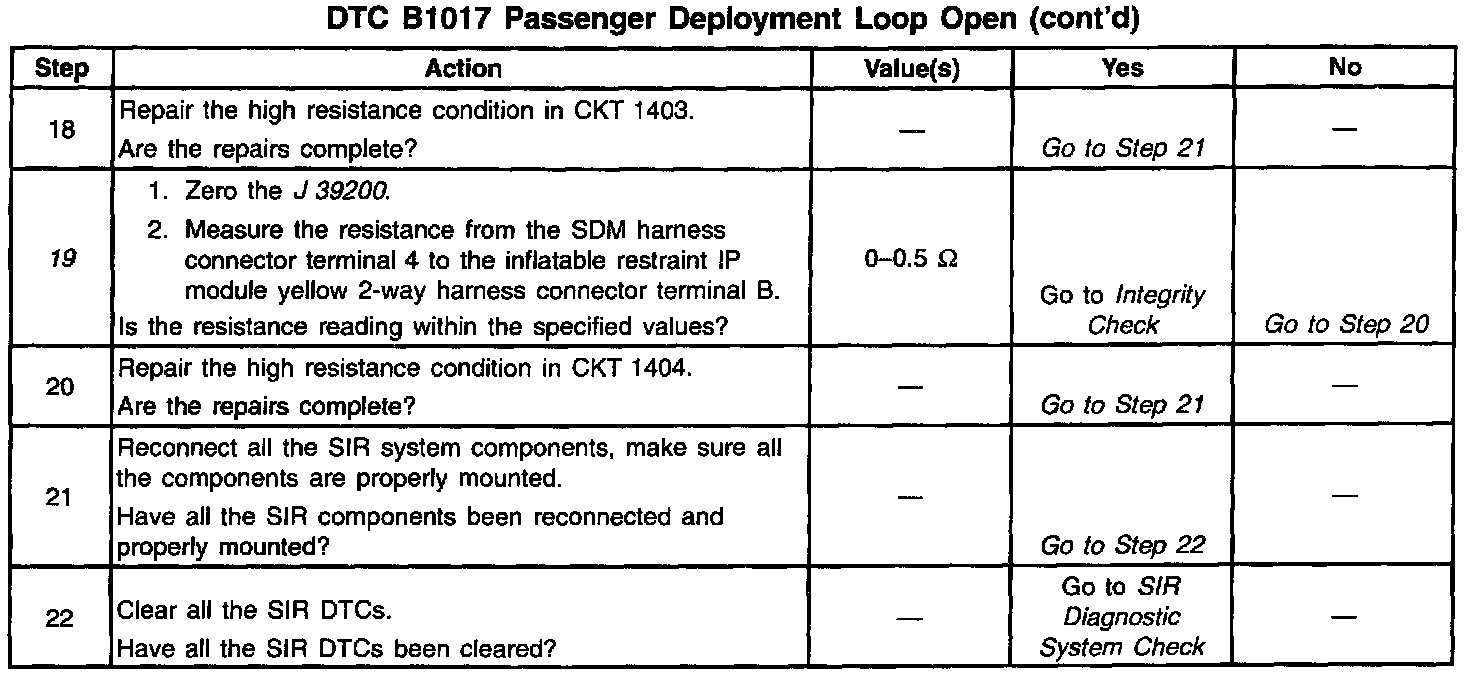

Diagnostic Chart:

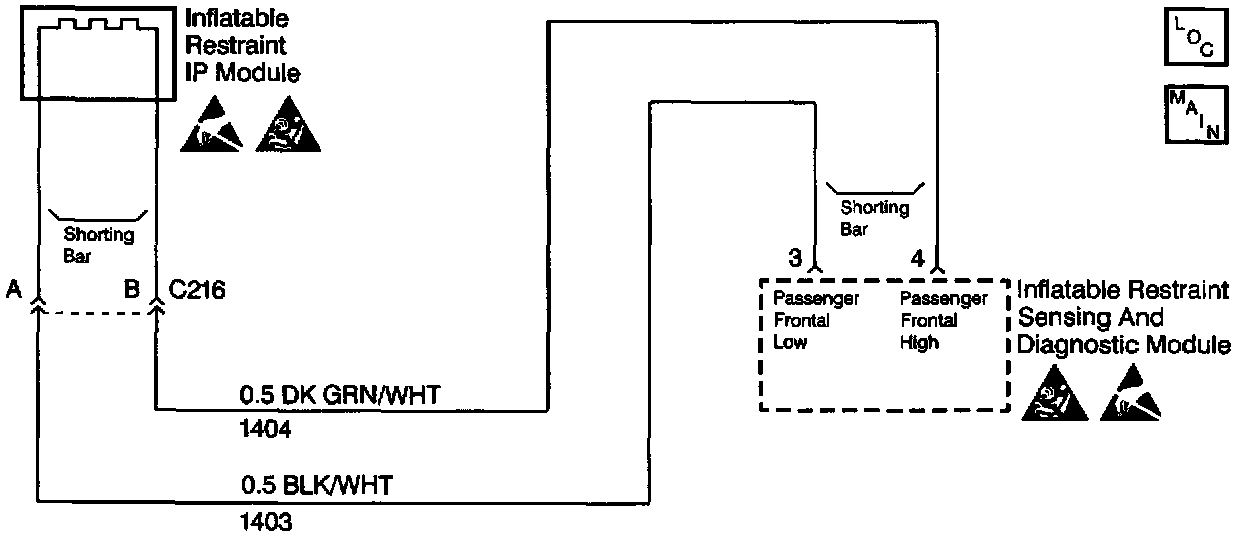

Wiring Diagram:





Circuit Description
When you first turn the ignition switch to the RUN position, the inflatable restraint Sensing and Diagnostic Module (SDM) performs tests to diagnose critical malfunctions within itself. Next the SDM measures IGNITION 1 voltage to make sure it is within its respective normal voltage range. Then the SDM proceeds with the DEPLOYMENT LOOP CONTINUITY test. During the DEPLOYMENT LOOP CONTINUITY test, the SDM measures the voltage difference between Passenger Frontal High and Passenger Frontal Low.

Conditions for Setting the DTC
- The voltage difference between Passenger Frontal High terminal 4 and Passenger Frontal Low terminal 3 is more than or equal to 480 millivolts.
- The malfunction must be present for at least 500 milliseconds during one of the following tests:
- DEPLOYMENT LOOP CONTINUITY
If the malfunction is detected in this test, the RESISTANCE MEASUREMENT test will not be performed.
- CONTINUOUS MONITORING

Action Taken When the DTC Sets
- The SDM sets a Diagnostic Trouble Code.
- The SDM turns ON the AIR BAG warning lamp.

Conditions for Clearing the DTC.
- Current DTC
The voltage difference between Passenger Frontal High terminal 4 and Passenger Frontal Low terminal 3 is less than 480 millivolts for 500 milliseconds.
- History DTC
- You issue a scan tool CLEAR CODES command.
- Once 250 malfunction free ignition cycles have occurred.

Diagnostic Aids
The following can cause an intermittent condition:
- A poor connection at the inflatable restraint IP module harness connector terminals A and B.
- A poor connection at the SDM terminals 3 and 4.
- An open in CKT 1403.
- An open in CKT 1404.

Test Description
The numbers below refer to the step numbers on the diagnostic table:
2. This test determines the deployment loop voltage difference measured by the inflatable restraint Sensing and Diagnostic Module (SDM).
3. This test checks for proper contact or corrosion of the yellow 2-way connector.
10. This test isolates the malfunction to one side of the inflatable restraint IP module yellow 2-way connector.
12. This test checks for proper contact or corrosion of the SDM harness connector.
17. This test determines whether the malfunction is in CKT 1403.
19. This test determines whether the malfunction is in CKT 1404.
