Wiper Blade Assembly Replacement

REMOVAL PROCEDURE

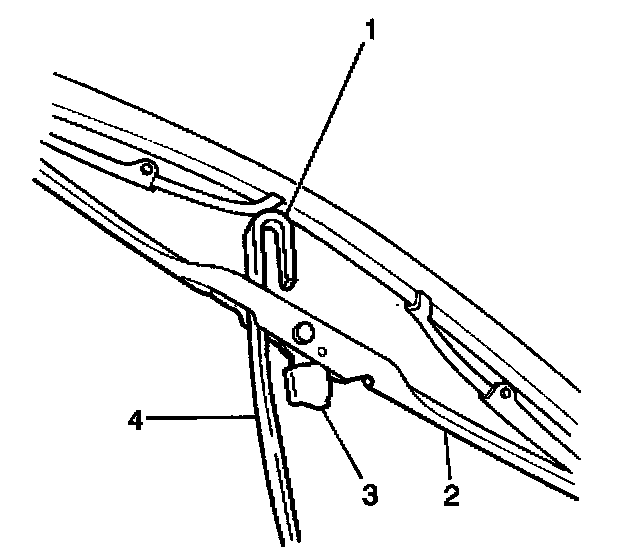

1. Depress the retaining tab (3) on the rear wiper blade assembly (2).
2. While depressing the tab (3), slide the blade assembly (2) down the rear wiper arm (4) until the blade clears the wiper arm hook (1).
3. Remove the blade assembly (2) from the wiper arm (4).

INSTALLATION PROCEDURE
1. Install the rear wiper blade assembly (2) to the rear wiper arm (4) by sliding the blade assembly (2) into the wiper arm hook (1).
2. Slide the blade into the wiper arm hook (1) until the blade assembly (2) clicks and locks into place.
