Governor Body Installation

^ Tools Required
- J 36850 Transjel Transmission Assembly Lubricant





1. Apply a thin coat of J 36850 to the primary and secondary valves.

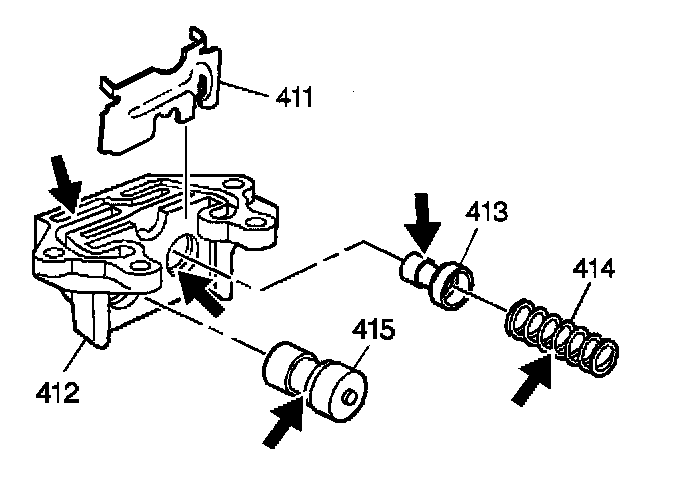

2. Install the following items into the governor body (412):
^ The primary valve (415)
^ The secondary valve (413)
^ The secondary spring (414)
^ The secondary valve retainer (411)

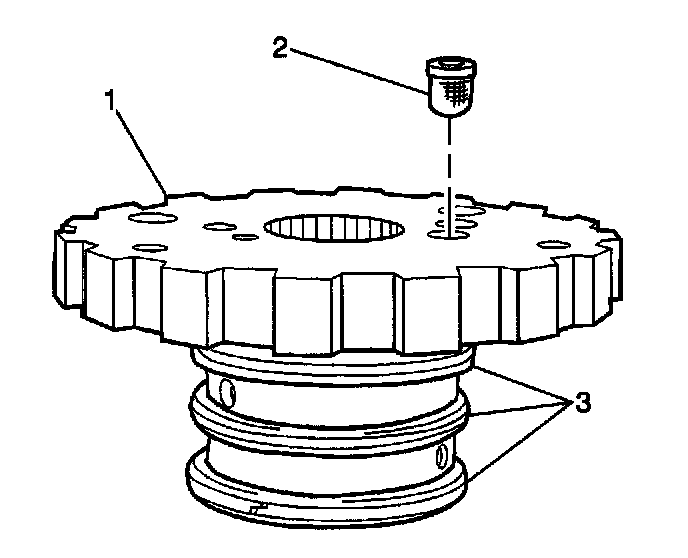

3. Install the governor fluid screen (2) into the governor hub (1).

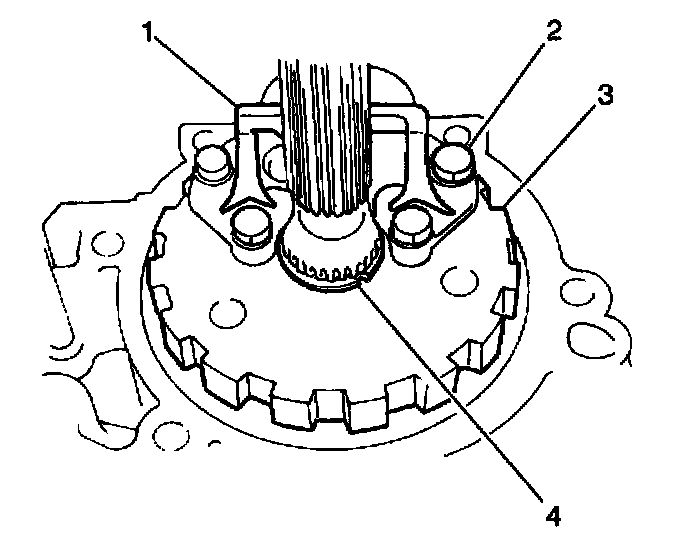

4. Install a new governor assembly gasket and a governor assembly (1) into the governor hub.
5. Install the four governor assembly bolts (2).
^ Tighten the governor assembly bolts to 9 Nm (80 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

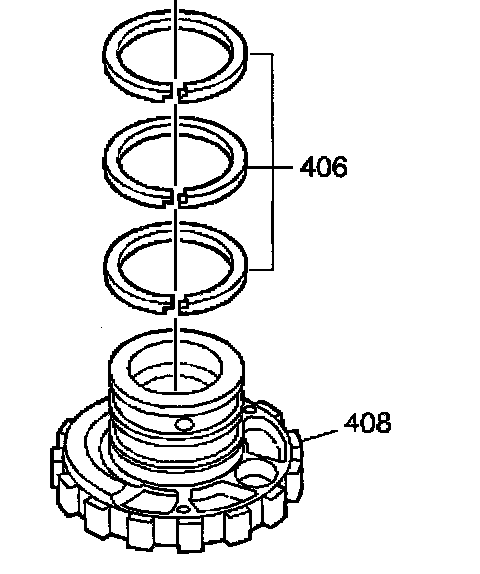

6. Apply a thin coat of the J 36850 to the governor seal rings (406) on the governor hub (408).





7. Install the governor hub (408) onto the transmission output shaft.
8. Install the governor ring (417).

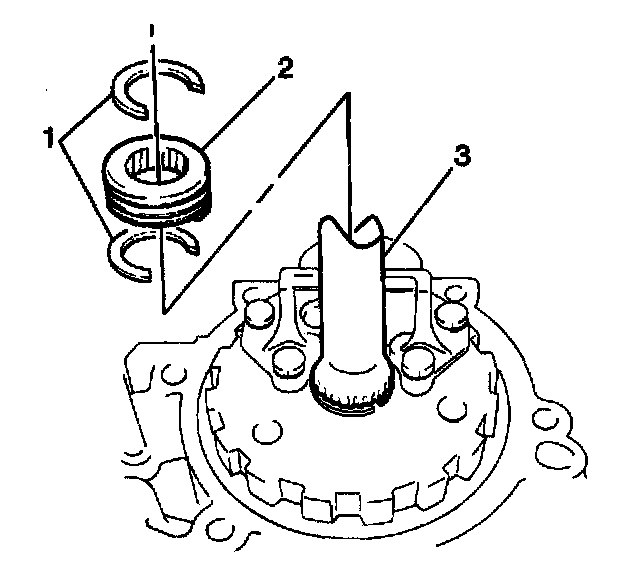

9. Install the speedometer drive gear (2) onto the transmission output shaft (3).
10. Install the two speedometer drive gear retaining rings (1).
11. Install the transfer adapter case to the transmission case, if the vehicle is four-wheel drive equipped.
12. Instal the extension housing to the transmission case, if the vehicle is two wheel drive equipped.
13. Lower the vehicle.
14. Refill the transmission as necessary.
