Rear Suspension

REMOVAL PROCEDURE

^ J 29792 Front Control Arm Bushing Service Set
^ J 35561 Front Control Arm Bushing Service Set

1. Remove the rear suspension upper control arm from the vehicle. Refer to Upper Control Arm Replacement.

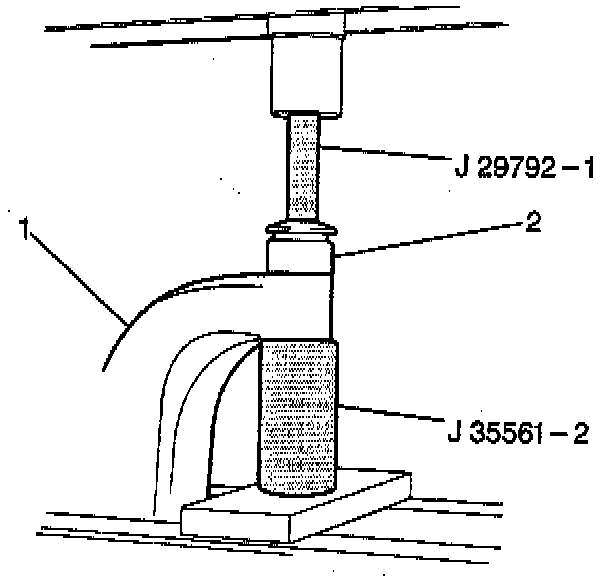

2. Use the J 29792 and the J 35561 in order to mount the upper control arm (1) into a press.
3. Use a press in order to remove the bushing from the upper control arm.





INSTALLATION PROCEDURE

^ J 29792 Front Control Arm Bushing Service Set
^ J 35561 Front Control Arm Bushing Service Set

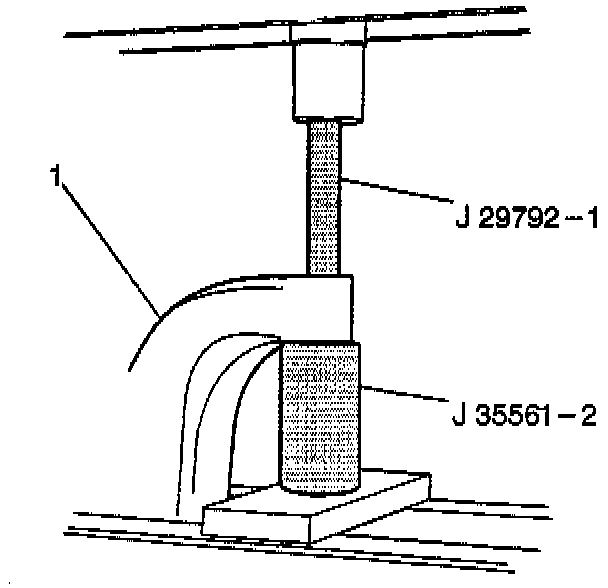

1. Use the J 29792, the J 35561 and a press in order to install a new bushing (2) into the upper control arm (1).
2. Install the upper control arm to the vehicle. Refer to Upper Control Arm Replacement.
