Idler Arm: Service and Repair

^ Tool Required:
- J 21687-02 Tie Rod End Remover
- Or Equivalent

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.

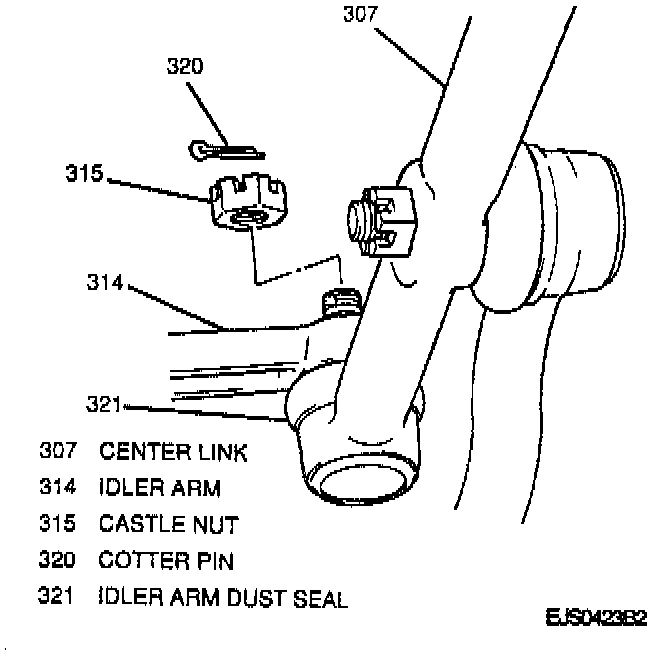

2. Cotter pin and idler arm castle nut from center link.

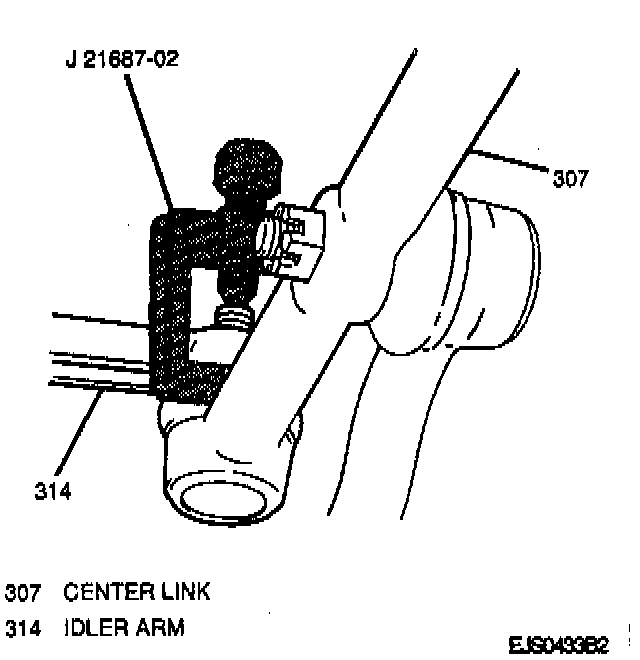

3. Idler arm from center link, using J 21687-02.

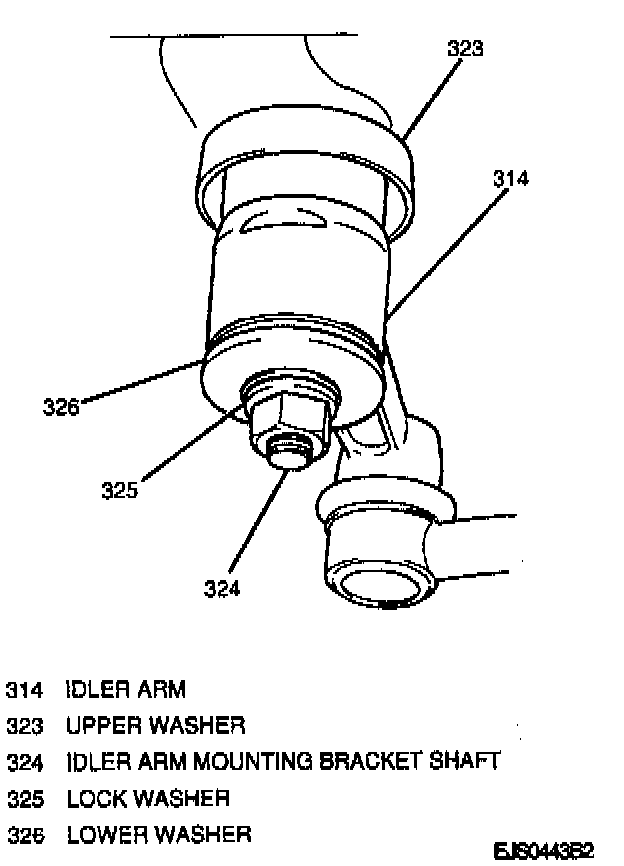

4. Idler arm nut, two lower washers, idler arm and upper washer from mounting bracket shaft.
^ Inspect the idler arm dust seal for perforation or excessive wear. Replace the seal if these conditions exist.

INSTALL OR CONNECT





1. Upper washer, idler arm and two lower washers to mounting bracket shaft; secure with nut.
^ Tighten the idler arm nut to 75 Nm (55 ft. lbs.).
2. Idler arm to center link; secure with castle nut.
^ Tighten the idler arm castle nut to 45 Nm (33 ft. lbs.).





3. Cotter pin to center link. Bend end of pin after installation.
4. Lower vehicle.
