Installation Procedure

Description:

1. Install the front seat belt buckle electrical connector (left side).

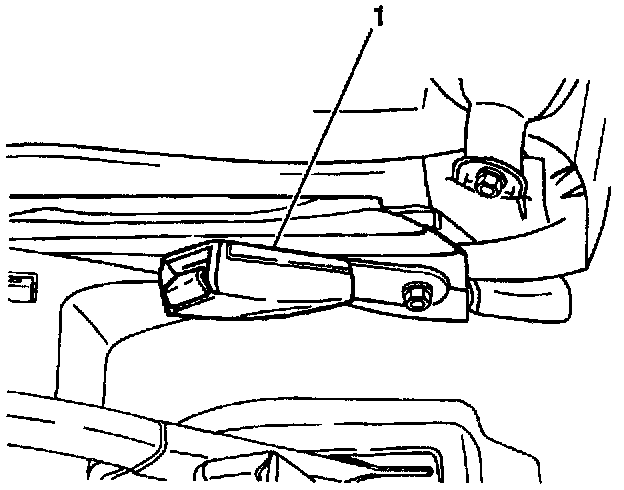

2. Install the front seat belt buckle (1) to the front seat frame.

NOTICE: Refer to Fastener Notice in Vehicle Damage Warnings.

3. Secure the front seat belt buckle (1) with one anchor bolt.

Tighten
Tighten the front seat belt buckle anchor bolt to 45 N.m (33 lb ft).
