Installation

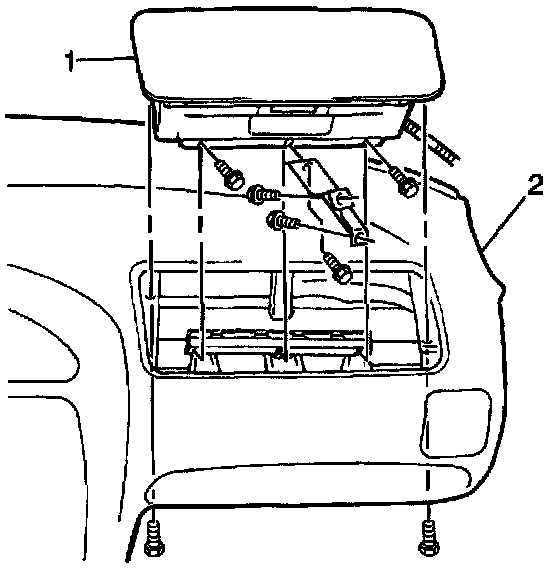

1. Install the inflatable restraint IP module (1) into the vehicle.
2. Install the inflatable restraint IP module fasteners. Tighten the five bottom center fasteners before you tighten the two upper side fasteners:
Tighten
Tighten the five bottom center fasteners (bolts) to 22.5 N.m (16.5 lb. ft).
Tighten
Tighten the two upper side fasteners (screws) to 5.5 N.m (49 lb. in).
3. Enable the SIR System.
