Fuel Tank Pressure Control Valve

Removal Procedure

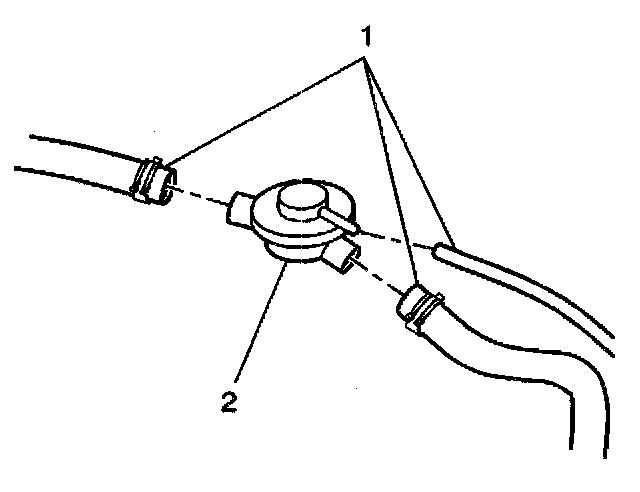

1. Remove the two clamps from the fuel tank pressure control valve.
2. Disconnect the three fuel vapor hoses (1) from the fuel tank pressure control valve.
3. Remove the fuel tank pressure control valve (2) from the engine compartment.

Installation Procedure
1. Install the fuel tank pressure control valve in the engine compartment.
2. Connect the three fuel vapor hoses to the fuel tank pressure control valve.
3. Secure the two clamps to the fuel tank pressure control valve.
