Fuel Supply Line: Service and Repair

WARNING: In order to Reduce the Risk of Fire and Personal Injury:
- If nylon fuel pipes are nicked, scratched or damaged during installation, Do Not attempt to repair the sections of the nylon fuel pipes. Replace them.
- When installing new fuel pipes, Do Not hammer directly on the fuel harness body clips as it may damage the nylon pipes resulting in a possible fuel leak.
- Always cover nylon vapor pipes with a wet towel before using a torch near them. Also, never expose the vehicle to temperatures higher than 115° C (239° F) for more than one hour, or more than 90° C (194° F) for any extended period.
- Before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends. This will ensure proper reconnection and prevent a possible fuel leak. (During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated).

Removal Procedure
1. Relieve the fuel system pressure. Refer to Fuel Pressure Release.
2. Disconnect the negative battery cable.
3. Raise and suitably support the vehicle.

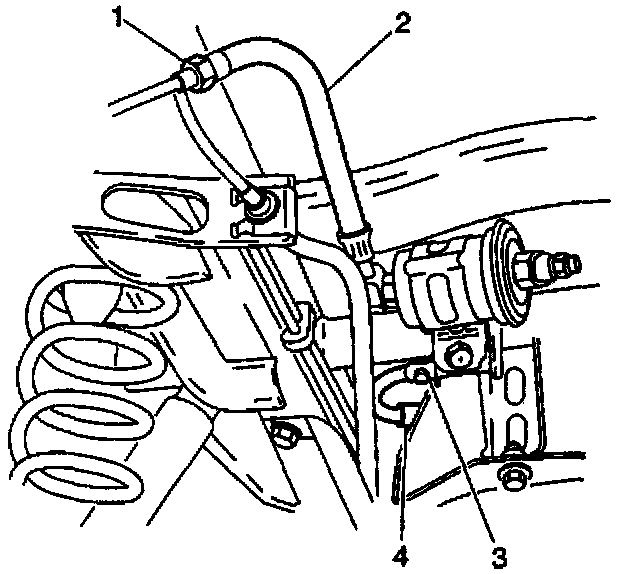

4. Disconnect the fuel return hose (3) from the fuel return pipe by the fuel tank.
5. Remove the bolt from the fuel feed outlet hose (1) from the fuel feed pipe by the fuel tank.
6. Disconnect the fuel feed outlet hose (2) from the fuel feed pipe by the fuel tank.
7. Disconnect the fuel vapor hose (4) from the fuel vapor pipe by the fuel tank.
8. Remove the bolt and disconnect the fuel feed hose (2) from fuel feed pipe in the engine compartment.





9. Disconnect the fuel return hose (1) from the fuel return pipe in the engine compartment.
10. Disconnect the fuel vapor hose (3) from the fuel vapor pipe in the engine compartment.

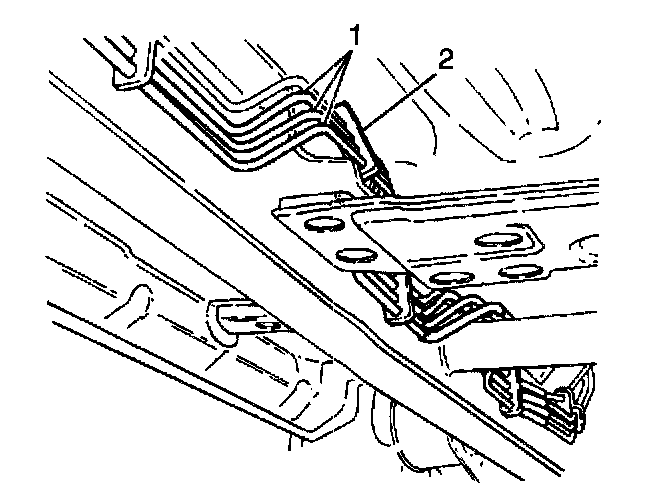

11. Remove the ten pipe retaining clamps (2) from the fuel pipes.
12. Remove the fuel pipes (1) from the vehicle underbody.

Installation Procedure
1. Install the fuel pipes to the underbody.
2. Secure the fuel pipes with ten pipe retaining clamps.
3. Connect the fuel vapor hose to the fuel vapor pipe in the engine compartment.
4. Connect the fuel return hose to the fuel return pipe in the engine compartment.
5. Connect the fuel feed hose to the fuel feed pipe in the engine compartment.
6. Secure the fuel feed hose with one bolt and tighten to 45 Nm (33 lb ft).
7. Connect the fuel vapor hose to the fuel vapor pipe by the fuel tank.
8. Connect the fuel feed outlet hose to the fuel feed pipe by the fuel tank.
9. Secure the fuel feed outlet hose with one bolt and tighten to 45 Nm (33 lb ft).
10. Connect the fuel return hose to the fuel return pipe by the fuel tank.
11. Lower the vehicle.
12. Connect the negative battery cable.
13. Turn the Ignition switch to the ON position and then to OFF to pressurize the fuel system.
14. Check for any fuel leaks, repair as necessary.
